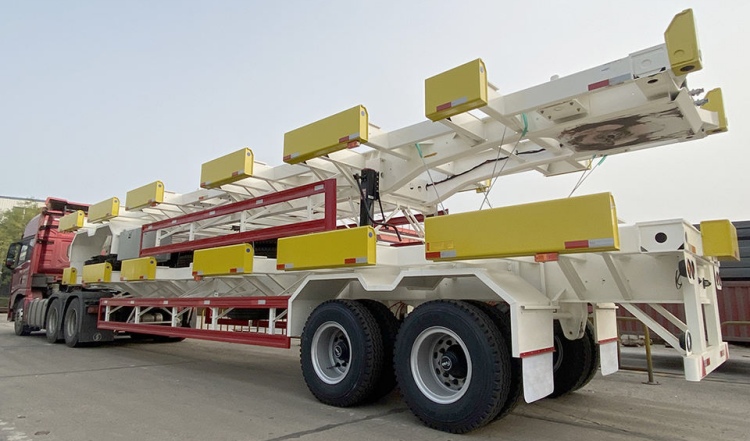

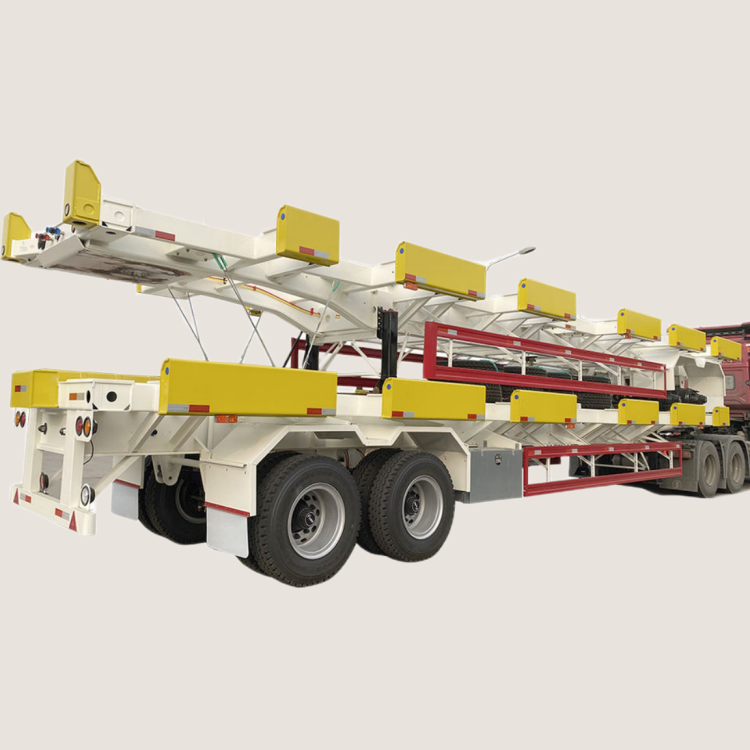

2 Axle 40/45ft Terminal Semi Port Trailer

Terminal Semi Trailer Description :

Terminal semi trailer are currently mainly used in ports. TITAN terminal semi trailer for sale is a high-capacity trailer capable of carrying container payloads of up to 50 tons. This trailer is designed to transport a single 20ft, double 20ft, 40ft or 45ft container at a time. The application of terminal port trailer greatly improves the transportation efficiency.

In order to improve the quality of the terminal semi trailer, we use high-strength steel on the beam, which makes the trailer carrying capacity stronger and will not easily cause the vehicle to deform. We not only provide high-quality yard terminal trailer, but also provide excellent pre-sales and after-sales services.

2 Axle 40/45ft Yard Terminal Semi Port Trailer for Sale in Senegal

2 Axle 40/45ft Yard Terminal Semi Port Trailer for Sale in Senegal

2 Axle 40/45ft Yard Terminal Semi Port Trailer for Sale in Senegal

2 Axle Terminal Semi Trailer Specification :

Model: 2 axle 40/45ft terminal semi trailer

Transport: container or bulk cargo

Loading capacity: 40-60 Tons

Overall dimension: 12500mm * 2480mm *1470mm

Walking system：

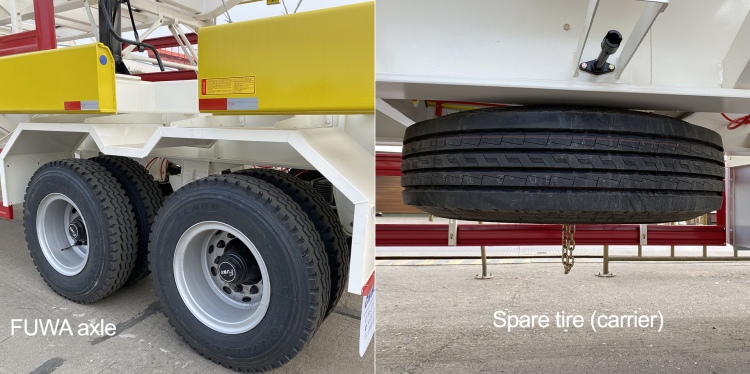

Axles: 2 axles , 13t/16t, FUWA/ BPW/TITAN

Suspension: Heavy duty mechanical suspension

Spring Leaf: 90(Width)mm*13(Thickness)mm*10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Tire: 8 units, 12.00R22.5 or 315/80R22.5

Accessories :

Twist Locks: 4,8,12 sets (lifting or screw type)

Langing gear: JOST/FUWA Brand

Traction Pin : Optional

ABS: Optional

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

LED：LED lights

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting :

Material : Polyurethane paint

Method : Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Package :

Shipping method: By bulk cargo carrier, RORO or 40HQ container

Terminal Port Trailer Advantages :

1. The yard terminal trailer electrical circuit connection device is equipped with a protective cover to prevent short circuit caused by rainwater and immersion, to prevent dust and other falling objects from being bumped and damaged, and to increase the safety of sockets and connectors.

2. The company's professional welders weld into uniform, plump and smooth welds through skilled welding operations, ensuring no spatter and welding slag, plus a thorough shot blasting effect, which increases the terminal semi trailer for sale's strength and aesthetics.

3. The terminal semi trailer lock beam is made of high-strength materials, with beautifully designed shapes at both ends, and high-standard cast steel locks, making it the only part connecting the container, increasing the safety and reliability during driving.

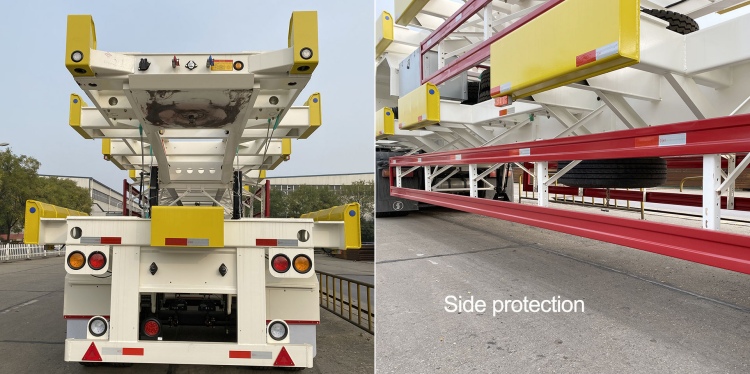

4. In the rear and rear style design, according to the actual needs of customers, we can make the most solid and buffered anti-collision structure, which reduces the damage to the terminal semi trailer for sale and avoids the damage caused by the inertial collision of the goods.

Through these videos, you can learn about different types of container chassis trailers, as well as the process, testing, packaging and customer feedback, etc.

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
