3 Axles 60 Ton Fence Cargo Semi Trailer

Fence Trailer Description :

Semi-trailer is mainly used to transport bulky goods that are not easy to disassemble. The fence cargo semi trailer for sale is more suitable for pulling fresh goods, such as vegetables, fruits, animals, etc.

TITAN can provides different types of fence cargo trailer for sale. Including 2/3/4 axles fence smei trailer with differnt loading capacity from 40-100 tons. TITAN fence semi trailer can meet different transport need.

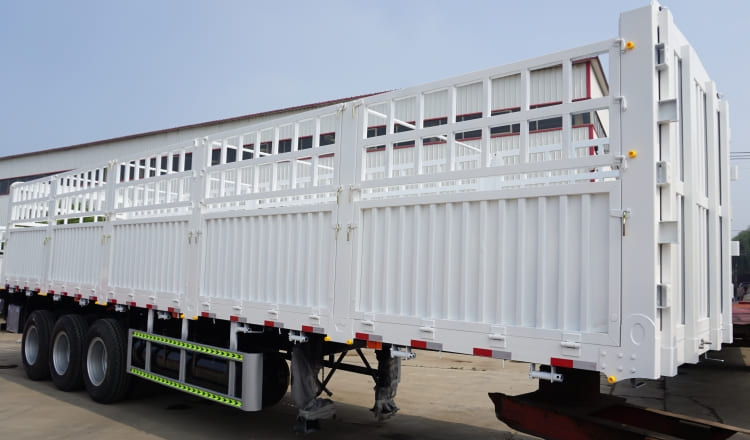

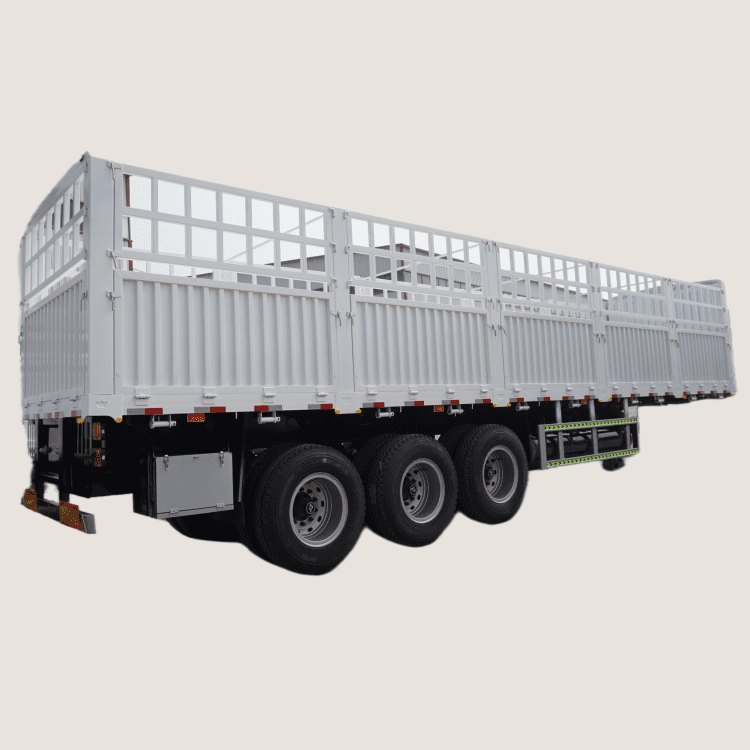

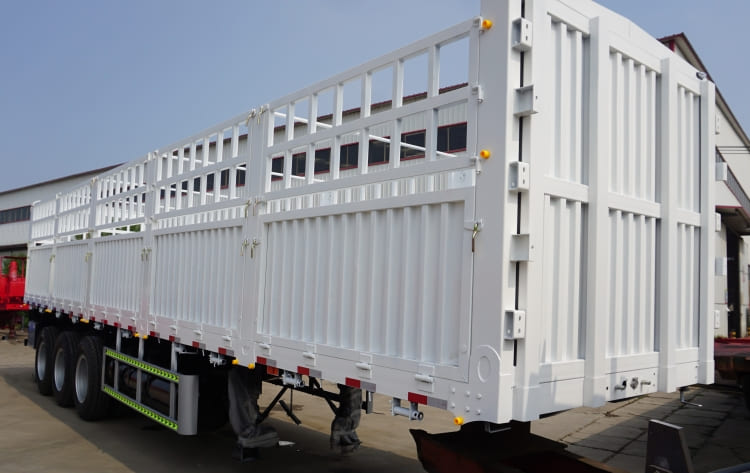

3 Axles Fence Cargo Semi Trailer for Sale in Malaysia

3 Axles Fence Cargo Semi Trailer for Sale in Malaysia

3 Axles Fence Cargo Semi Trailer for Sale in Malaysia

3 Axles Fence Trailer Specification :

Model: 3 axle 60 ton fence cargo semi trailer

Dimension(mm): 13000mmx2650mmx3050mm

Trailer Sides: Optional

Loading capacity(ton): 60-80T

Frame :

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Bottom Platform: 3mm-thick checkered plate

Walking system :

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Tare Weight: About 7.6T

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Accessories ：

Landing Gear: JOST brand D200T or TITAN brand 28tons(double-speed)

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting :

Material : Polyurethane paint

Method : Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Package :

Shipping method: By bulk cargo carrier, RORO or 40HQ container

Cargo Semi Trailer Advantages :

1. TITAN fence cargo semi trailer suspension adopts internationally renowned brand, the latest design of the suspension system, high strength, strong impact resistance, strong bearing capacity, balanced axle load on each axle, reasonable design of the system pull rod angle, can effectively reduce the bumps in the fence semi trailer.

2. The frames of this series of fence semi trailer for sale are all beam-type structures, and the longitudinal beams are straight beams or gooseneck beams. The longitudinal beam is welded by automatic submerged arc welding technology, and the transverse beam penetrates into the longitudinal beam for integral welding.

3. TITAN fence cargo semi trailer for sale adopts high-strength steel welded body. It can ensure that the fence trailer has a higher load capacity and a longer service life.

4. In order to ensure the service life of the 3 axles 60 ton fence cargo semi trailer for sale, the spare parts of the fence trailer all used world-renowned brands, such as landing gear, suspension, tire, breaking system, ect.

Through this video, you can learn about different types of fence semi-trailers, as well as the process, testing, packaging and customer feedback, etc.

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
