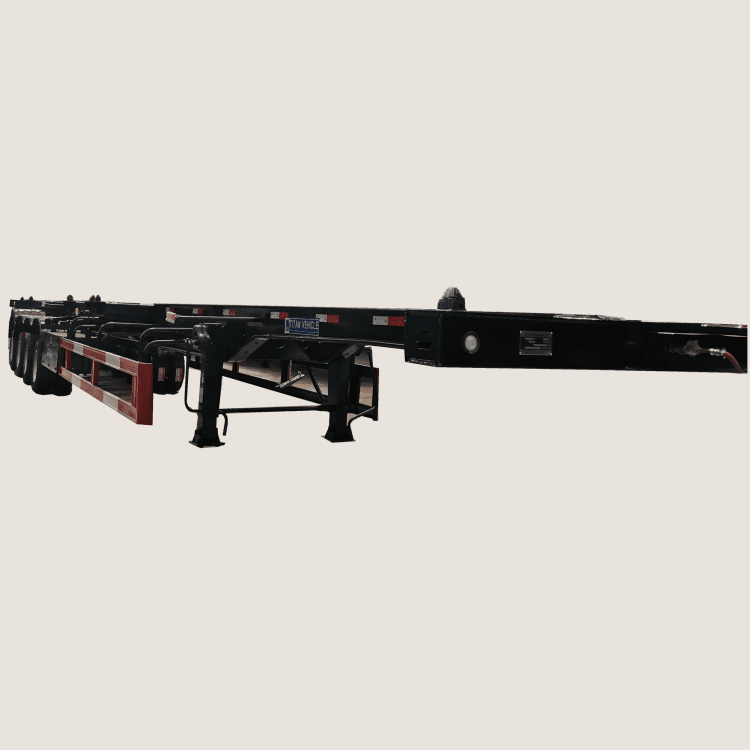

4 Axle 48 Ft Skeletal Chassis Semi Trailer

Skeletal Truck Trailer Description :

Skeletal chassis semi trailers is a special vehicle for transporting containers, and the 20/40 inch skeletal truck trailer is the most popular model. Of course, TITAN can provide 45/48/53 ft skeletal truck trailer according to your needs.

The trailer is equipped with skeletal trailer twist lock to fixed the container.  Skeletal truck trailer for sale is mainly used for container transportation supporting ships, ports, shipping lanes, highways, transit stations, bridges, tunnels, and multimodal transport.

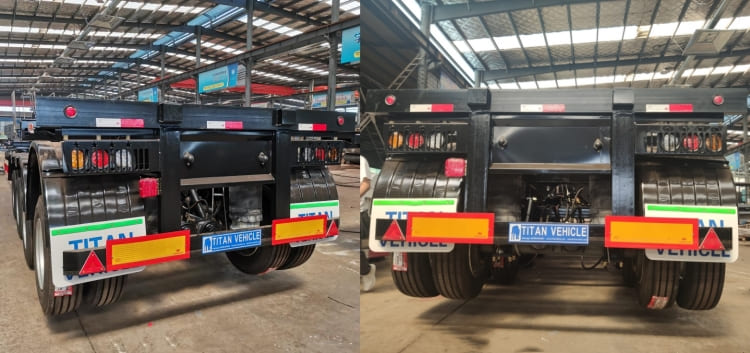

4 Axle 48 Ft Skeletal Chassis Semi Truck Trailers with Twist Lock for Sale

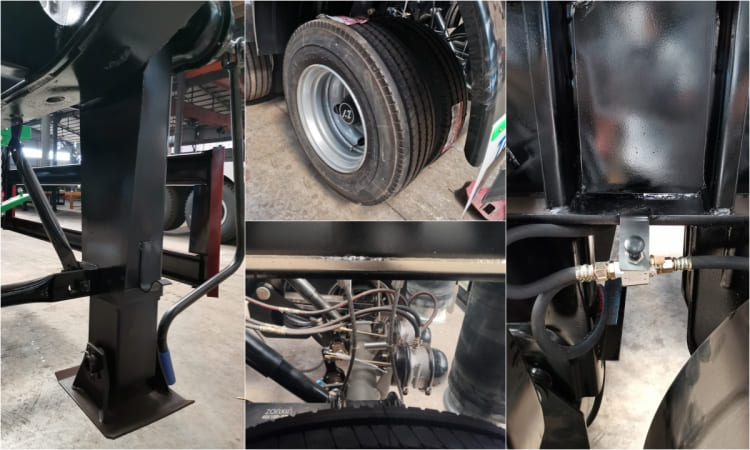

4 Axle 48 Ft Skeletal Chassis Semi Truck Trailers with Twist Lock for Sale

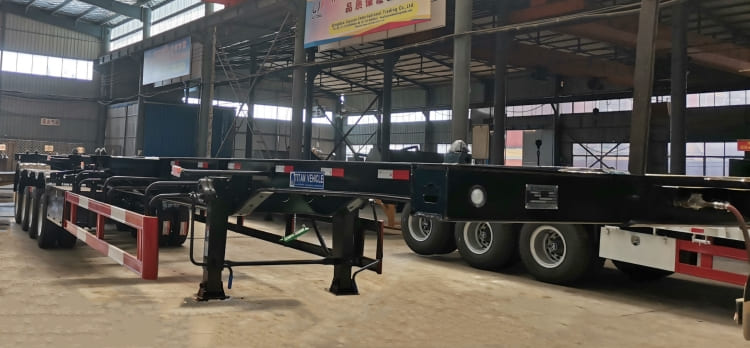

4 Axle 48 Ft Skeletal Chassis Semi Truck Trailers with Twist Lock for Sale

4 Axle Skeletal Truck Trailer Specification :

Model: 4 axle 48 ft skeletal truck trailer

Transport: 20ft/40ft container

Loading capacity: 60-80 Tons

Overall dimension: 12000mm * 2260mm *1470mm

Walking system：

Axles: 4 axles , 13t/16t, FUWA/ BPW/TITAN

Suspension: Heavy duty mechanical suspension

Spring Leaf: 90(Width)mm*13(Thickness)mm*10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Tire: 16 units, 12.00R22.5 or 315/80R22.5

Accessories :

Twist Locks: 4,8,12 sets (lifting or screw type)

Langing gear: JOST/FUWA Brand

Traction Pin : Optional

ABS: Optional

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

LED：LED lights

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting :

Material : Polyurethane paint

Method : Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Package :

Shipping method: By bulk cargo carrier, RORO or 40HQ container

Skeletal Chassis Semi Trailers Advantages :

1. In order to save the transportation cost of customers, this skeletal truck trailer can be loaded into a container every two units, without removing the tire axles, realizing the containerized transportation of the whole vehicle, and it is convenient for customers to load and unload the skeletal truck trailer under the condition of saving freight.

 2. The TITAN 4 axle skeletal truck trailer applies mature lightweight technology to the skeleton truck trailer. Under the premise of the same box weight, it can carry more goods and achieve greater economic benefits for our customers.

3. TITAN 4 axle 48 ft skeletal truck trailer for sale adopts the technology of excellence, pursues high quality, unique ingenuity, and highlights the brand advantage in subtleties. The trailer can take into account more road conditions, more flexible and more stable.

4. Different from the common reinforcement method at the top of the fender plate, the bottom bracket support on the fender of the TITAN skeleton truck trailer can effectively prevent the damage to the fender caused by the bumping of the container, and make the line of the whole vehicle more perfect.

Through these videos, you can learn about different types of container chassis trailers, as well as the process, testing, packaging and customer feedback, etc.

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
