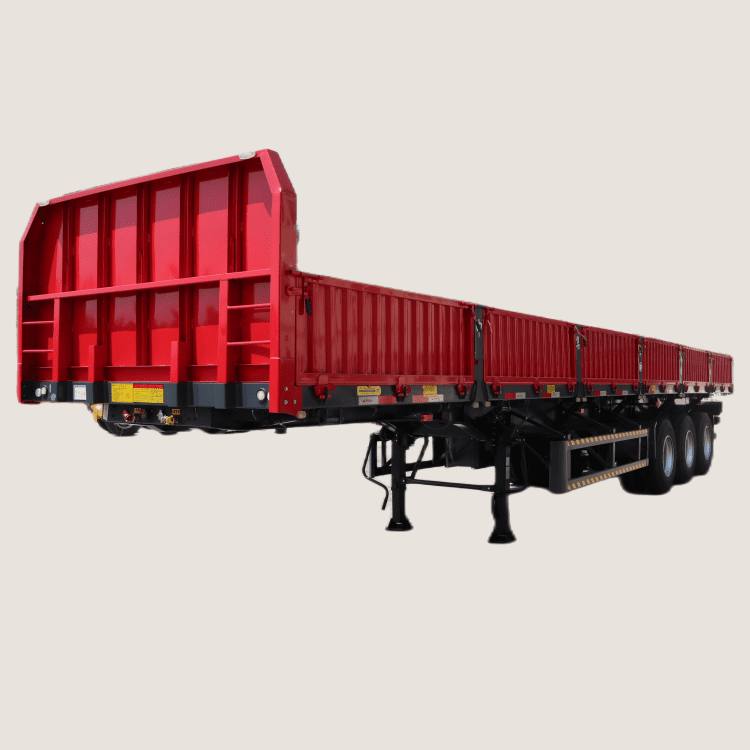

3 Axle 50 Ton Sideboard Trailer

Sideboard Trailer Description :

As a transport vehicle, the 3 axle sideboard trailer can carry a wide range of cargo types. Many super-long, super-wide, and super-high cargo can be loaded, such as steel, wood, and stone, especially for the transportation of large equipment. Therefore, almost all goods within the range can be loaded.

If you want to increase the deadweight tonnage of the sideboard trailer, we suggest that you can increase the height of the fence. The side board trailer on the picture is a fence truck with a relatively low height. We can also customize sideboard trailer for sale with different heights for you to meet your different transportation needs.

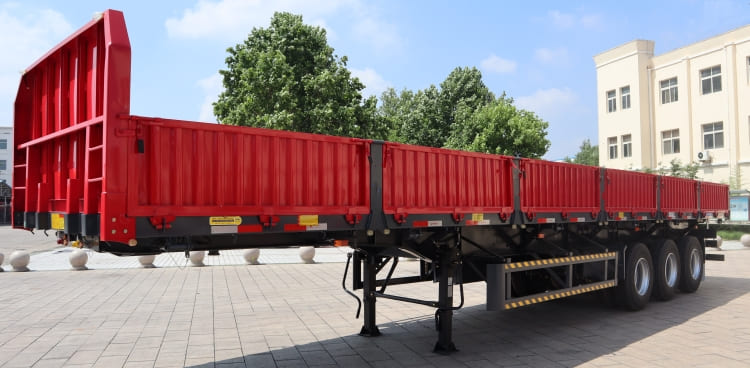

3 Axle 50 Ton Sideboard Trailer | Side Board Trailer for Sale

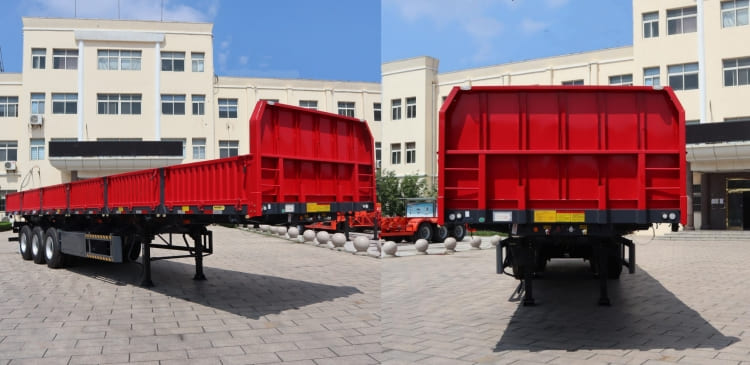

3 Axle 50 Ton Sideboard Trailer | Side Board Trailer for Sale

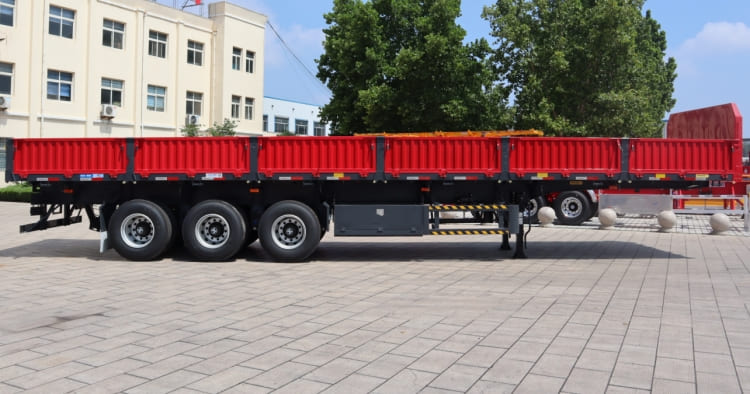

3 Axle 50 Ton Sideboard Trailer | Side Board Trailer for Sale

Sideboard Trailer Specification :

Model: 3 axle 50 ton sideboard trailer

Dimension(mm): 13000mmx2650mmx3050mm

Trailer Sides: 600mm

Loading capacity(ton): 60-80T

Frame :

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Bottom Platform: 3mm-thick checkered plate

Walking system :

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Tare Weight: About 7.6T

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Accessories ：

Landing Gear: JOST brand D200T or TITAN brand 28tons(double-speed)

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting :

Material : Polyurethane paint

Method : Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Package :

Shipping method: By bulk cargo carrier, RORO or 40HQ container

Sideboard Trailer for Sale Advantages :

1. High quality side wall, make sure the stable and safety of the loads. Also the 3 axle sideboard trailer floor is checker plate, this will keep the other bulk cargo more stable, like the bags, or long stuff.

2. The sideboard trailer for sale body is made of high-quality steel, advanced technology, and strict production. The vehicle has a reasonable structure, reliable performance, easy operation, beautiful appearance, and long service life.

3. The suspension of 50 ton sideboard trailer adopts reinforced mechanical suspension with reasonable structure, strong load capacity, strong rigidity and strength, and is used to support the load and reduce the impact.

4. TITAN also adopts advanced submerged arc welding technique to produce the sideboard trailer for sale, so there is no welding interface between middle,bottom and upper plate of main beam.

Through this video, you can learn about different types of sidewall semi trailers, as well as the process, testing, packaging and customer feedback, etc.

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
