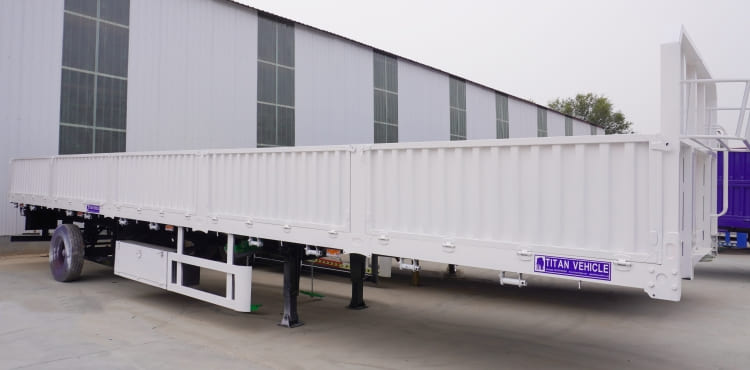

60 Ton Flatbed Trailer with Sideboard

Sideboard Trailer Description :

TITAN  can provides side board trailer for sale with different size and loading caoacity, such as 2/3/4 axle sideboard trailer with different loading ability from 40-100 tons. TITAN sideboard can meet your personal transport need. And the load capacity can be increased by increasing the height of the sideborad.

Flatbed trailer with sideboard are widely used, mainly used to pull some inconvenient bulk cargo, such as grain, fruits and vegetables, animals, etc., or some building materials.

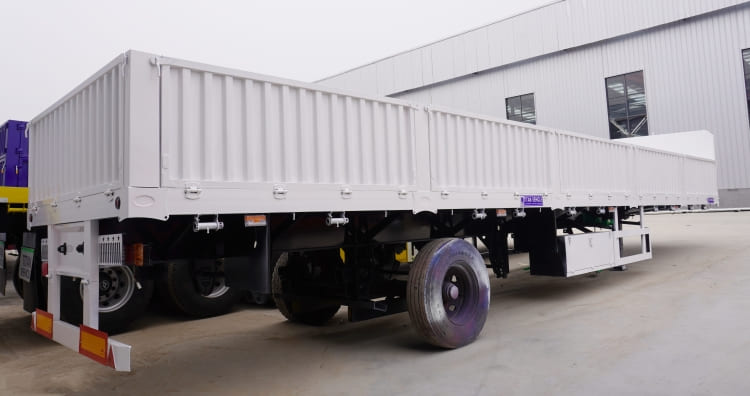

60 Ton Flatbed Trailer with sideboard for Sale | What is a Trailer with Sides Board called?

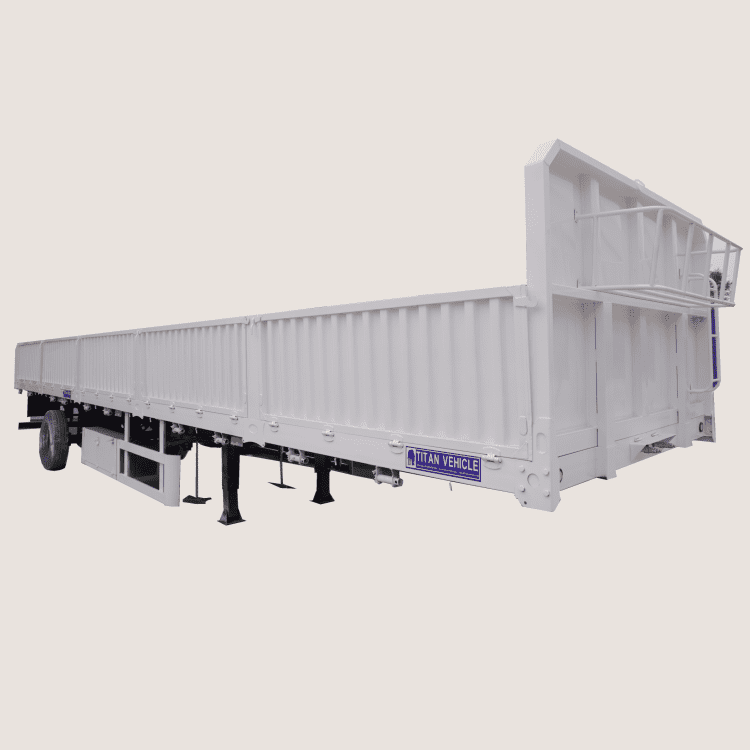

60 Ton Flatbed Trailer with sideboard for Sale | What is a Trailer with Sides Board called?

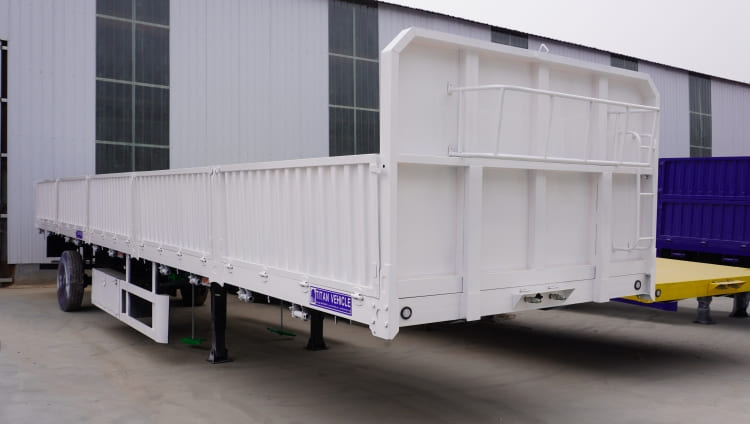

60 Ton Flatbed Trailer with sideboard for Sale | What is a Trailer with Sides Board called?

Side Board Trailer Specification :

Model: 60 ton sideboard trailer

Dimension(mm): 13000mmx2650mmx3050mm

Trailer Sides height: Optional

Loading capacity(ton): 60-80T

Frame :

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Bottom Platform: 3mm-thick checkered plate

Walking system :

Axles: 13T/16T ,FUWA/ BPW/ TITAN Brand

Tire: 2 units, 12.00R22.5 or 315/80R22.5

Tare Weight: About 7.6T

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension/ Airbag suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Accessories ：

Landing Gear: JOST brand D200T or TITAN brand 28tons(double-speed)

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting :

Material : Polyurethane paint

Method : Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Package :

Shipping method: By bulk cargo carrier, RORO or 40HQ container

Sideboard Trailer for Sale Advantages :

1. The frame is a beam-through structure, the longitudinal beam is straight or gooseneck type, the frame is welded by high-strength steel, the longitudinal beam is welded by automatic submerged welding, the frame is shot peened, the beam is penetrated into the longitudinal beam and welded as a whole, Greatly improve the load capacity of the sideboard trailer.

2. There are many types of goods that can be loaded in the fence carriage. Many super-long, super-wide and super-high goods can be loaded, such as steel, wood, and stone. Especially for the transportation of large equipment, the loading and unloading barriers are small, so it can be loaded almost Accept all goods within the scope.

3. TITAN 60 ton sideboard trailer for sale accessories are selected from internationally renowned brands, JOST axles, WABCO brake systems, etc. Greatly improve the quality and service life of the side board trailer.

4. The flatbed trailer with sideboard features a new special design with multiple reinforcement in many places, allowing the trailer to carry a maximum load of 80 tons. No matter how complex the road conditions can be handled.

Through this video, you can learn about different types of sidewall semi-trailers, as well as the process, testing, packaging and customer feedback, etc.

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
