3 Axle 40 Ft Flat Bed Trailer with Front Board

Flat Bed Trailer Descriptiion :

The flat bed trailer for sale is used as a special transport trailer for carrying containers. Most of the loading parts are sized according to the standard container size, and there are twist-lock devices for securing the container at the positions corresponding to the four corners of the bottom of the container. Therefore, the 3 axle flat bed 40 ft trailers is the best-selling model.

The semi-trailer for loading containers is divided into flat bed trailer and skeleton trailer. The former has a flat cargo platform and can also be used to transport ordinary long-sized goods; the latter has no cargo platform, and the container is loaded on the chassis frame and fixed by a twist lock device.

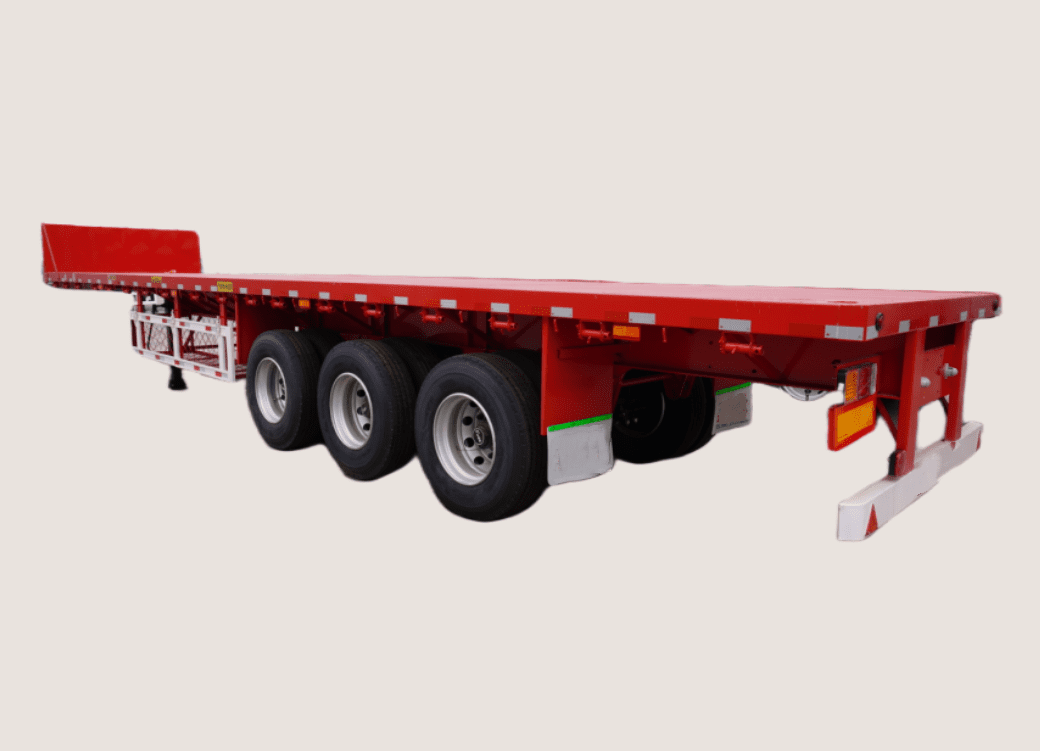

3 Axle Flat Bed Trailers 40 Ft with Front Board for Sale

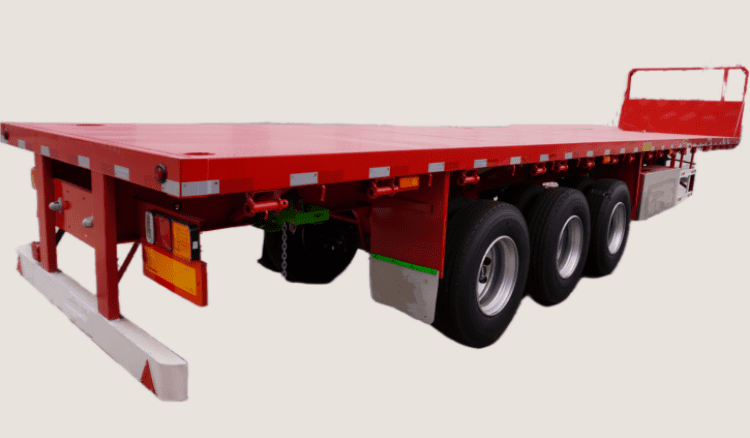

3 Axle Flat Bed Trailers 40 Ft with Front Board for Sale

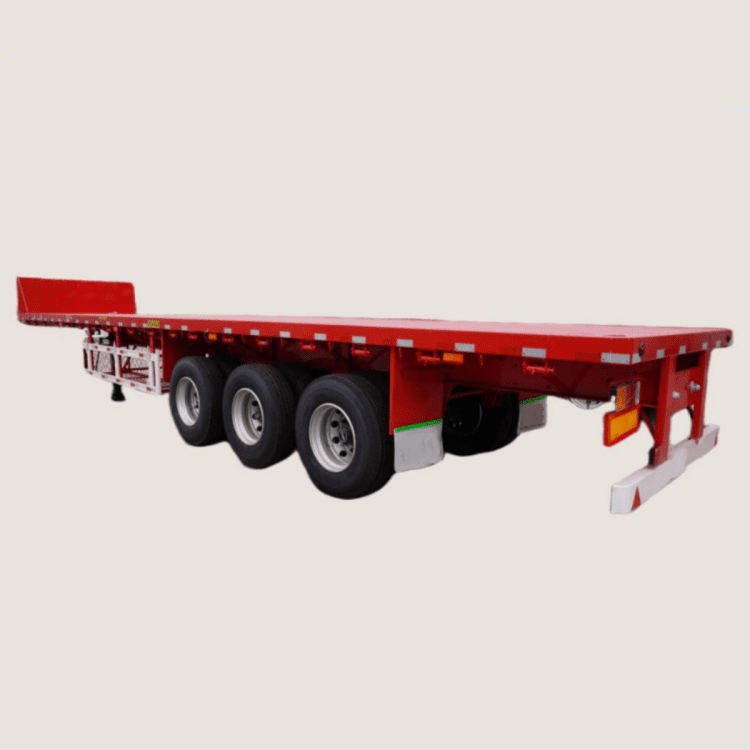

3 Axle Flat Bed Trailers 40 Ft with Front Board for Sale

3 Axle Flat Bed Trailer Specification :

Model: 3 axle flat bed 40 ft trailers

Transport: 20ft, 40ft container or bulk cargo

Loading capacity: 60-80 Tons

Overall dimension: 12500mm * 2500mm *1540mm

Main Beam: height: 500mm, upper plate:14mm, middle plate:8mm, bottom plate:16mm, material: Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Walking system：

Axles: 3 axles , 13t/16t, FUWA/ BPW/TITAN

Suspension: Heavy duty mechanical suspension/airbag suspension

Spring Leaf: 90(Width)mm*13(Thickness)mm*10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Accessories :

Twist Locks: 4,8,12 sets (lifting or screw type)

ABS: Optional

Langing gear: JOST/FUWA Brand

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

LED：LED lights

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting :

Material : Polyurethane paint

Method : Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Package :

Shipping method: By bulk cargo carrier, RORO or 40HQ container

Flat Bed Trailer with Front Board Advantages :

1. The material of TITAN flat bed trailer for sale adopts T700 high-strength steel, which can make the flat bed trailer have higher carrying capacity and longer service life, and reduce the maintenance cost of customers. The trailer platform adoptd 3mm-thick checkered plate, which is more stable when loading and unloading goods.

2. The frame of the TITAN flat bed trailer for sale is made of Q345 high-strength steel, which has a stronger bearing capacity. We also adopts advanced submerged arc welding technique to produce the trailer, one-time main beam forming, there is no welding interface.

3. The whole 3 axle flat bed 40 ft trailers is painted with polyurethane paint. It has strong paint film, full luster, strong adhesion, water resistance and wear resistance, and strong corrosion resistance. And we can also customize the color according to customer preference.

4. We can customize trailers according to customers' transportation needs, in addition to the more common 20/40 inch flat bed trailer. We can also supply 45/48/53 inch flat bed trailer for sale, or flat bed trailer with front board, ect.

Through this videos, you can learn about different types of flatbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.

Please click "TITAN Flatbed Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
