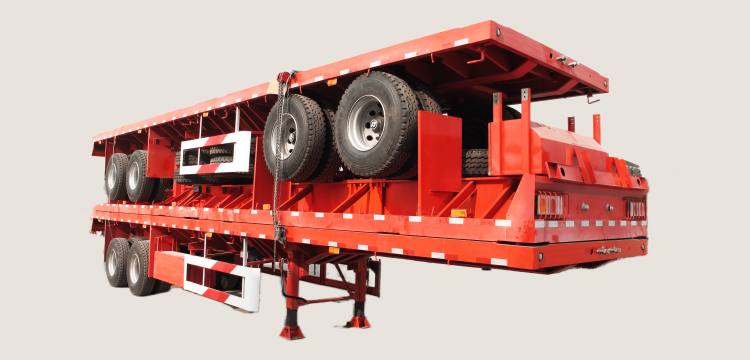

 2 Axles 40ft Flatbed Container Trailer with Bogie Suspension

2 Axles 40ft Flatbed Container Trailer with Bogie Suspension

9800 USD

TITAN is a professional semi-trailer supplier, dedicated to providing customers with the most cost-effective semi-trailer products. Flatbed trailer for sale is the most exported product of TITAN, and among them, the 2 axles 40ft flatbed container trailer is the most popular among customers.

SKU: 2 Axles 40ft Flatbed Container Trailer
MPN: TITAN9800008
Brand: TITAN

Flatbed Trailer Description :

TITAN as a professional flatbed trailer manufacturer has been engaged in the production and export of trailers for more than 18 years, exporting more than 27,000 trailers worldwide. Flatbed trailers are one of our most advantageous products. A flatbed trailer for sale is a type of trailer suitable for transporting bulk cargo and containers between shipping facilities and terminals.

A flatbed is usually a flat platform that is 20 feet, 40 feet, 48 feet or 53 feet long. Usually used to transport 20ft or 40ft containers, mainly used for container transportation supporting ships, ports, waterways, highways, transfer stations, bridges, tunnels, multimodal transport, etc.

 2 Axles 40ft Flatbed Container Trailer for Sale Manufacturers in Sierra Leone

 2 Axles 40ft Flatbed Container Trailer with Bogie Suspension for Sale Manufacturers

 2 Axles 40ft Flatbed Container Trailer for Sale Manufacturers in Sierra Leone

 2 Axles 40ft Flatbed Container Trailer with Bogie Suspension for Sale Manufacturers

 2 Axles 40ft Flatbed Container Trailer for Sale Manufacturers in Sierra Leone

 2 Axles 40ft Flatbed Container Trailer with Bogie Suspension for Sale Manufacturers

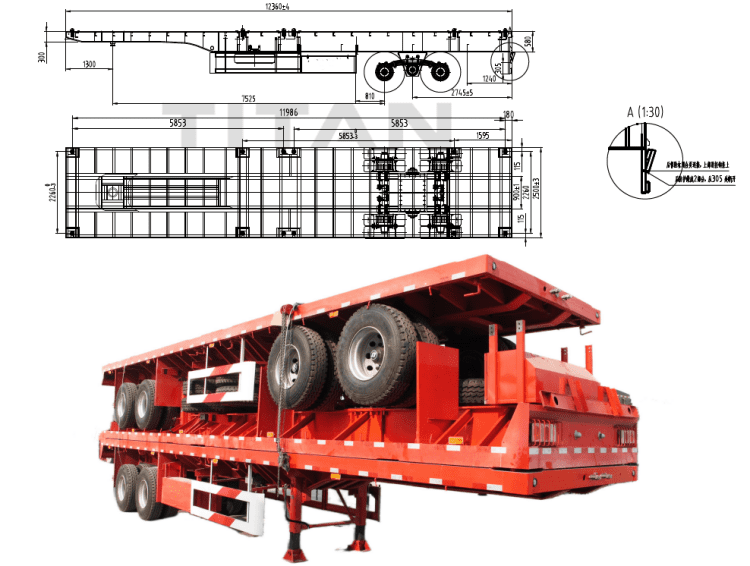

FlatBed Trailer with Bogie Suspension Specification :

Model: 2 axles 40ft flatbed container trailer

Transport: 20ft, 40ft container or bulk cargo

Loading capacity: 40-60 Tons

Overall dimension: 1236mm * 2260mm *1470mm

Main Beam: height: 500mm, upper plate:14mm, middle plate:8mm, bottom plate:16mm, material: Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Walking system:

Axles: 2 axles , 13t/16t, FUWA/ BPW/TITAN

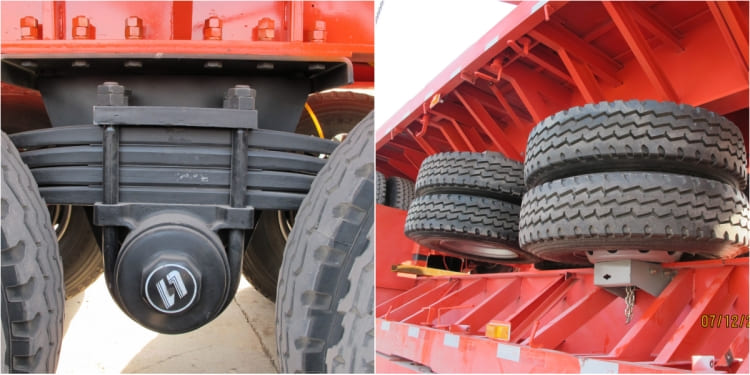

Suspension: Bogie Suspension

Spring Leaf: 90(Width)mm*13(Thickness)mm*10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Tire: 8 units, 12.00R22.5 or 315/80R22.5

Accessories :

Twist Locks: 4,8,12 sets (lifting or screw type)

ABS: Optional

Langing gear: JOST/FUWA Brand

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

LED:LED lights

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting :

Material : Polyurethane paint

Method : Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Package :

Shipping method: By bulk cargo carrier, RORO or 40HQ container

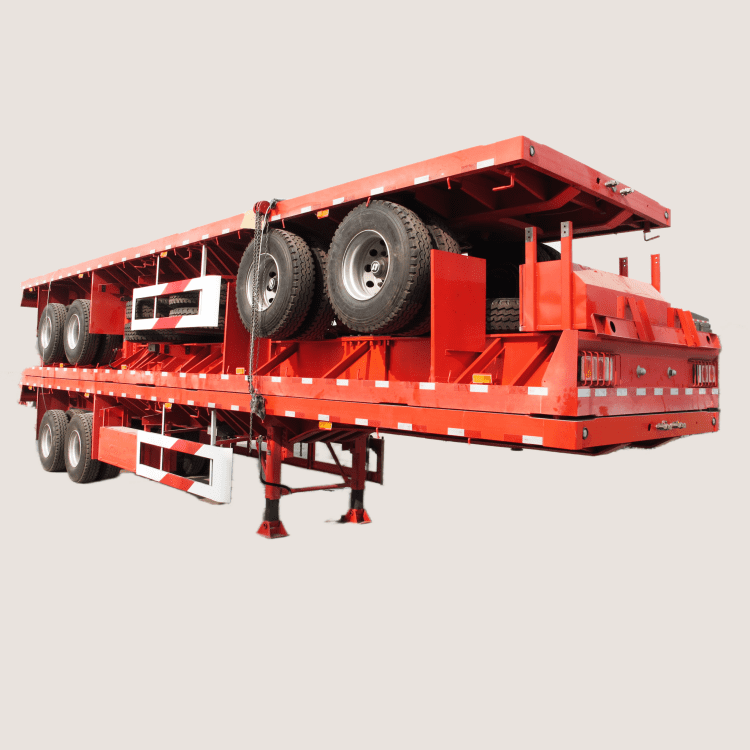

flatbed trailer with Bogie Suspension

 2 Axles 40ft Flatbed Container Trailer with Bogie Suspension for Sale Manufacturers

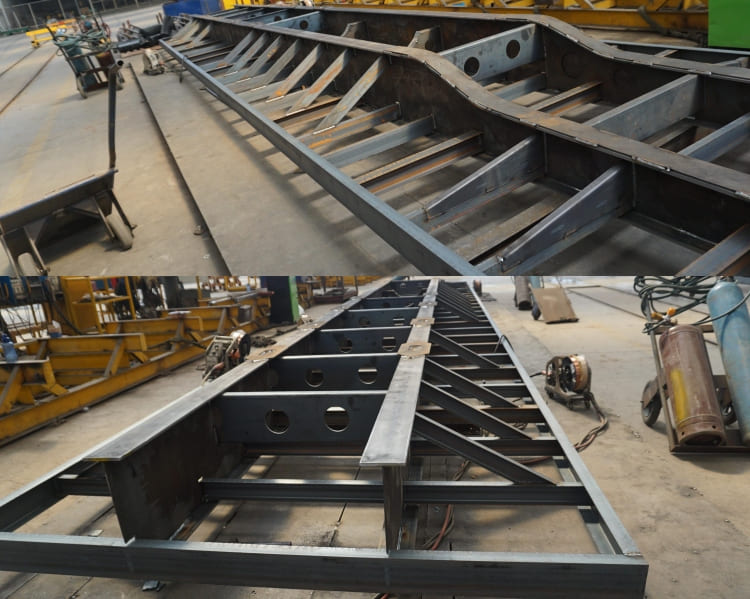

Flatbed Trailer in the Factory :

TITAN uses high-strength steel to produce 2 axles flatbed container trailer, which have stronger bearing capacity. The main beam of flatBed trailer with bogie suspension is welded by automatic submerged arc welding in the welding of the beam, which makes the main beam more durable and has a service life of more than 10 years.

 2 Axles 40ft Flatbed Container Trailer with Bogie Suspension for Sale Manufacturers



Through this videos, you can learn about different types of flatbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.3 axle 40ft flatbed trailer

Please click "TITAN Flatbed Trailer" to get detailed video!



Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!

Feedback

Review

Arteaga from Rwanda - 2022-12-21T17:18:02+0800
Great customer service, very responsive to emails and helping sort out any issues. The frame of the flatbed trailer is very sturdy and very durable at first glance.
