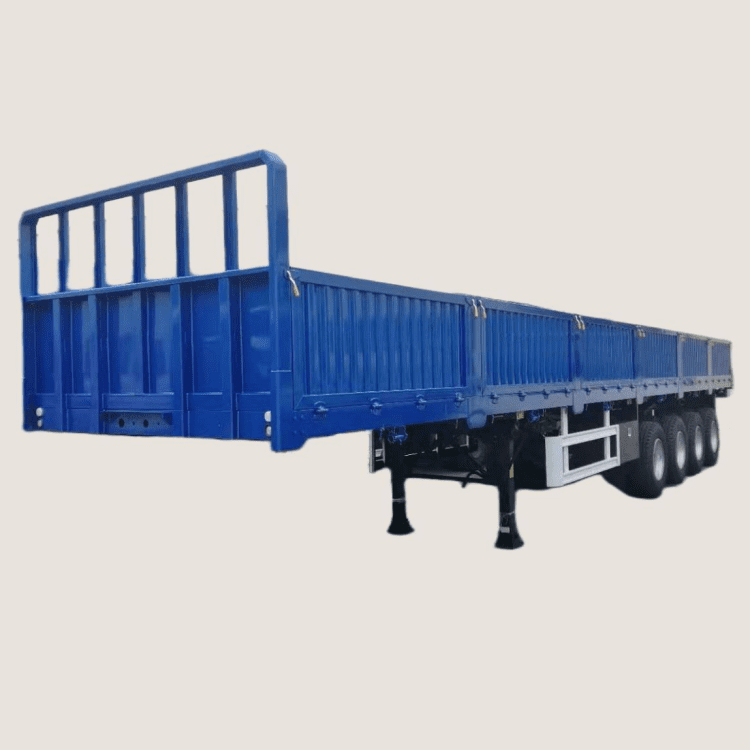

4 Axle 80 Tons Drop Side Semi Trailer

Drop Side Trailer Description :

TITAN has successfully exported drop side trailer for sale to dozens of countries around the world, and has won high praise locally, especially in Africa, South America and Southeast Asia. TITAN is committed to providing customers with high-quality, cost-effective drop side semi trailer for sale.

A drop side trailer is a semi-trailer with a railing structure. Wide range of uses, mainly suitable for medium and long-distance transportation of medium-heavy and bulk cargo. With strong applicability, it has become the first choice for medium and long-distance freight vehicles. It has the characteristics of strong cargo carrying capacity, simple and practical design, and reliable performance.

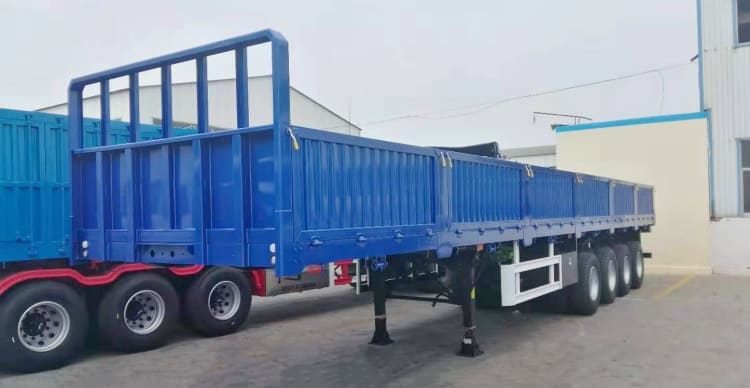

4 Axle 80 Tons Drop Side Semi Trailer for Sale in Zimbabwe

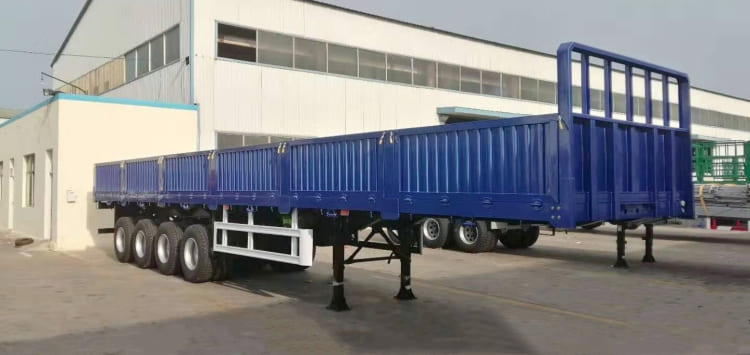

4 Axle 80 Tons Drop Side Semi Trailer for Sale in Zimbabwe

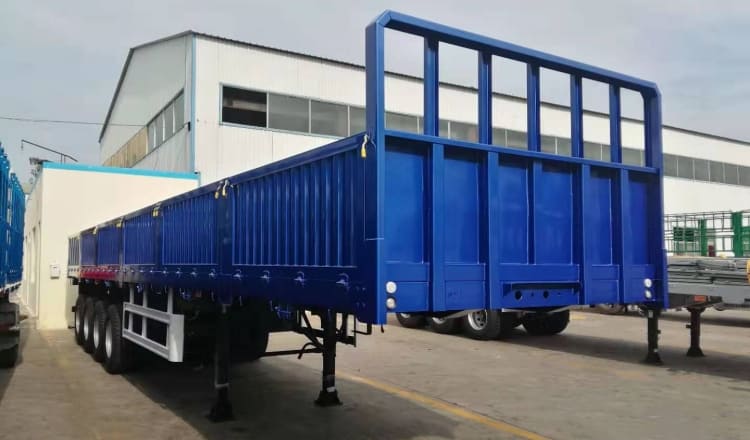

4 Axle 80 Tons Drop Side Semi Trailer for Sale in Zimbabwe

Drop Side Trailer Specification :

Model: 4 axle 80 tons drop side trailer

Dimension(mm): 13000x2500x3050mm

Trailer Sides: 1500mm

Loading capacity(ton): 60-80T

Frame :

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Bottom Platform: 3mm-thick checkered plate

Walking system :

Axles: 4 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

Tire: 16 units, 12.00R22.5 or 315/80R22.5

Tare Weight: About 7.6T

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Accessories ：

Landing Gear: JOST brand D200T or TITAN brand 28tons(double-speed)

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting :

Material : Polyurethane paint

Method : Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Package :

Shipping method: By bulk cargo carrier, RORO or 40HQ container

Drop Side Semi Trailer Advantages :

1. The body of the TITAN drop side trailer for sale is welded with high-quality steel, using advanced welding technology and strict production. The drop side trailer has reasonable structure, reliable performance, convenient operation and beautiful appearance.

2. There are two kinds of traction pin all over the world, TITAN will give both of them to meet all the need of our customer. We adopts triple reinforcement on our landing gear, which can greatly extend the service life of drop side trailer.

3. TITAN drop side trailer for sale adopts advanced submerged arc welding technology to produce sidewall trailers, so there is no welding interface between the middle, bottom and upper plates of the main beam, making the main beam more durable.

4. The TITAN 4 axle drop side trailer has a balanced load on each axle, and the system pull rod angle is designed reasonably, which reduces the friction and slip distance between the tire and the ground during frequent bumpy operations, and effectively reduces tire wear.

Through this video, you can learn about different types of sidewall semi trailers, as well as the process, testing, packaging and customer feedback, etc.

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
