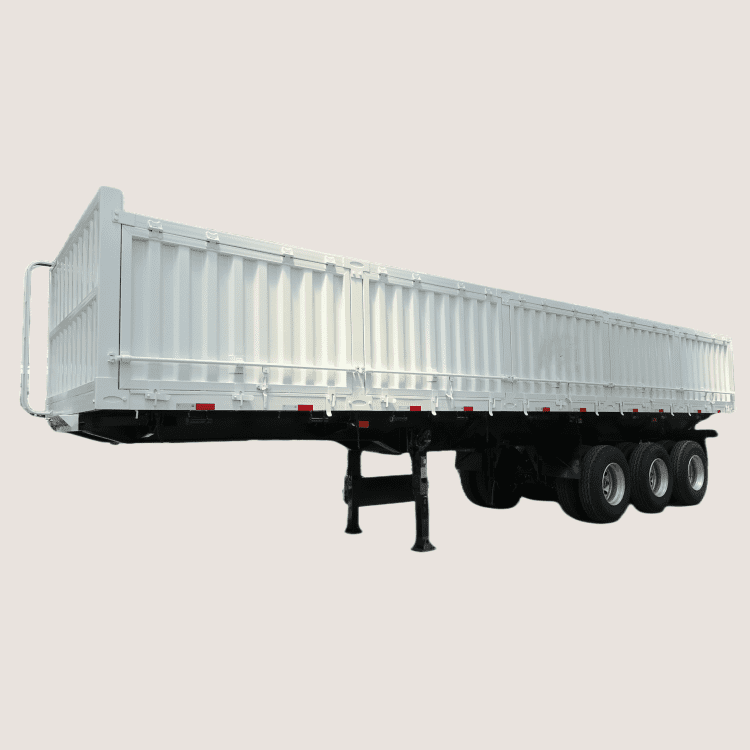

Tri Axle High Sided Drop Side Trailer

High Drop Side Trailers Description :

Flatbed trailers with dropside wall are widely welcomed by logistics and transportation companies due to their versatile applications. High sided drop side trailers can be used to load sand, bags, poultry, etc. In addition, the drop side trailer can also be used to load other bulk goods. High drop side trailers can also be used to load containers with container locks.

As a professional trailer manufacturer, TITAN has been engaged in the production and export of flatbed trailers with dropside wall in China since 2014, and the export countries are all over the world, especially in Africa, Southeast Asia and South America and other countries and regions.

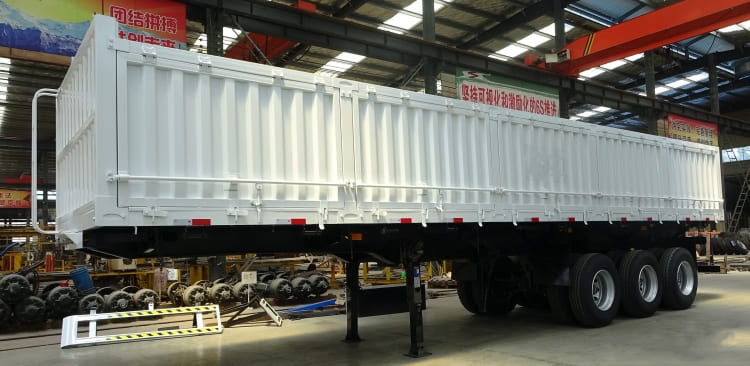

Tri Axle High Sided Drop Side Trailers |  Flatbed Trailers with Dropside Wall

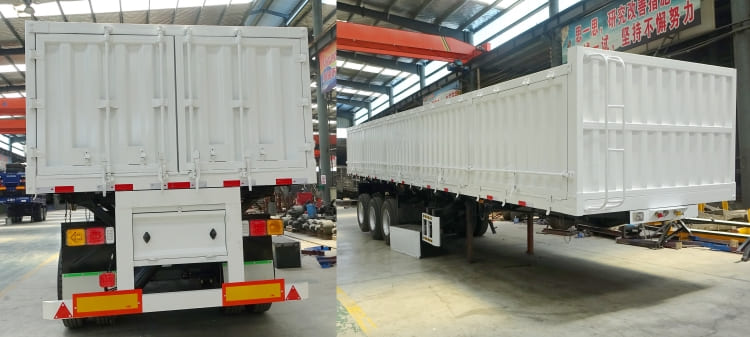

Tri Axle High Sided Drop Side Trailers |  Flatbed Trailers with Dropside Wall

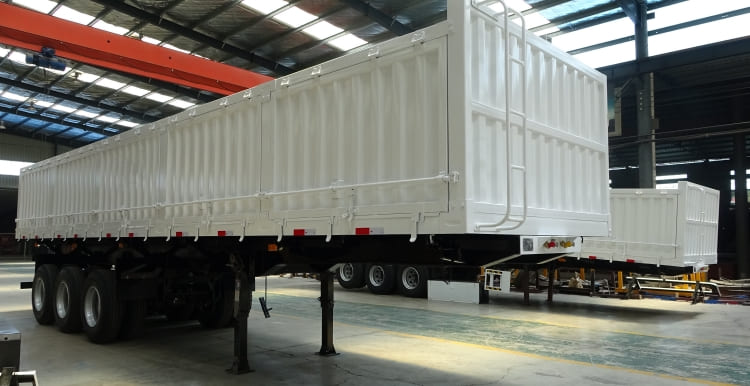

Tri Axle High Sided Drop Side Trailers |  Flatbed Trailers with Dropside Wall

Drop Side Trailer Specification :

Model: Tri axle drop side trailer

Dimension(mm): 13000x2500x3050mm

Trailer Sides: 1500mm

Loading capacity(ton): 60-80T

Frame :

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Bottom Platform: 3mm-thick checkered plate

Walking system :

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Tare Weight: About 7.6T

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Accessories ：

Landing Gear: JOST brand D200T or TITAN brand 28tons(double-speed)

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting :

Material : Polyurethane paint

Method : Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Package :

Shipping method: By bulk cargo carrier, RORO or 40HQ container

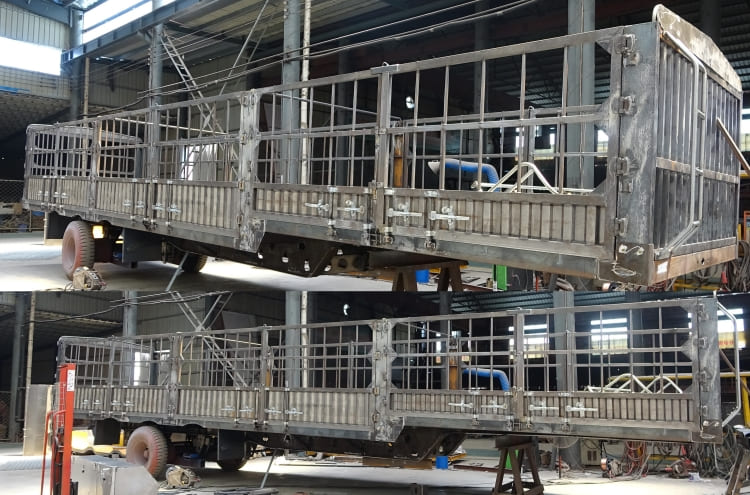

High Drop Side Trailers in the Factory :

Tri Axle High Sided Drop Side Trailers |  Flatbed Trailers with Dropside Wall

Through this video, you can learn about different types of sidewall semi-trailers, as well as the process, testing, packaging and customer feedback, etc.

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
