4 Axles 53 Ft Flatbed Truck Trailer

4 Axle Flatbed Description :

Flatbed trailers are divided into many types according to the number of axles and the size of the flatbed truck trailer body. Among them, the more popular are 3 axle 40 foot flatbed trailers and 4 axles 40 foot flatbed trailers. We can also customize special 4 axles 53 ft flatbed trailer for sale near me according to the transportation needs of customers.

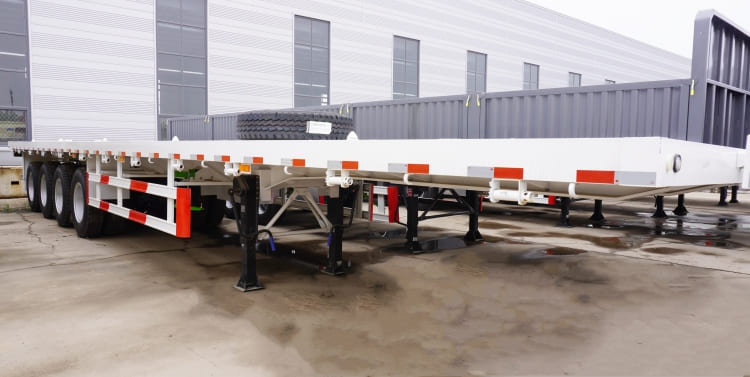

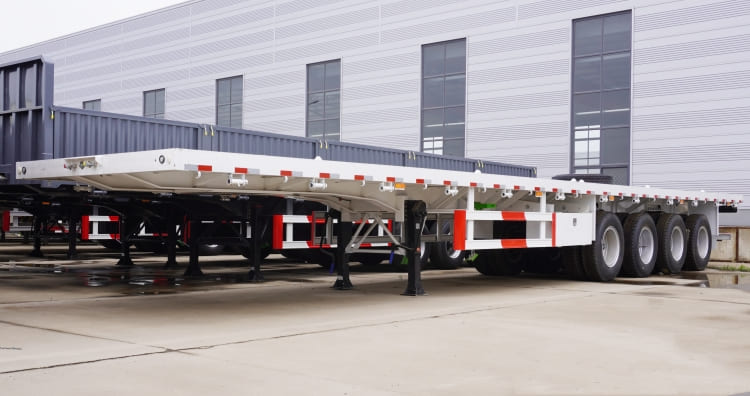

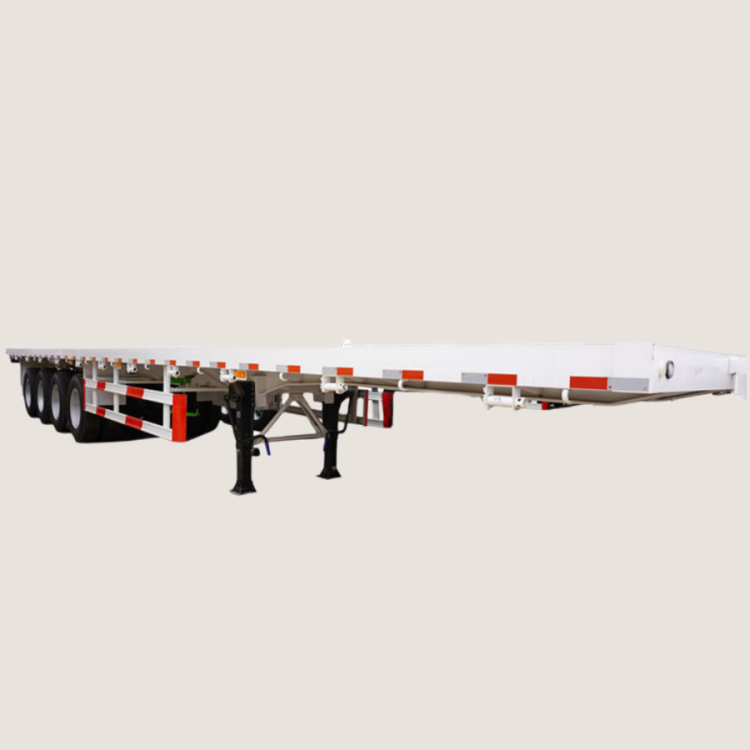

Flatbed truck trailer usually have three types of suspension, namely mechanical suspension, air suspension and single-point suspension. The 4 axles 53 ft flatbed trailer for sale in the picture is a flatbed with single-point suspension.

4 Axles 53 Ft Flatbed Truck Trailers for Sale Near Me in Kenya

4 Axles 53 Ft Flatbed Truck Trailers for Sale Near Me in Kenya

Details about Flatbed Trailer :

4 Axles 53 Ft Flatbed Truck Trailers for Sale Near Me in Kenya

4 Axles 53 Ft Flatbed Truck Trailers for Sale Near Me in Kenya

4 Axles Flatbed Trailers Specification :

Model: 4 axles 53 ft flatbed trailer for sale

Transport: 20ft, 40ft container or bulk cargo

Loading capacity: 60-80 Tons

Overall dimension: 12500mm * 2500mm *1540mm

Main Beam: height: 500mm, upper plate:14mm, middle plate:8mm, bottom plate:16mm, material: Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Walking system：

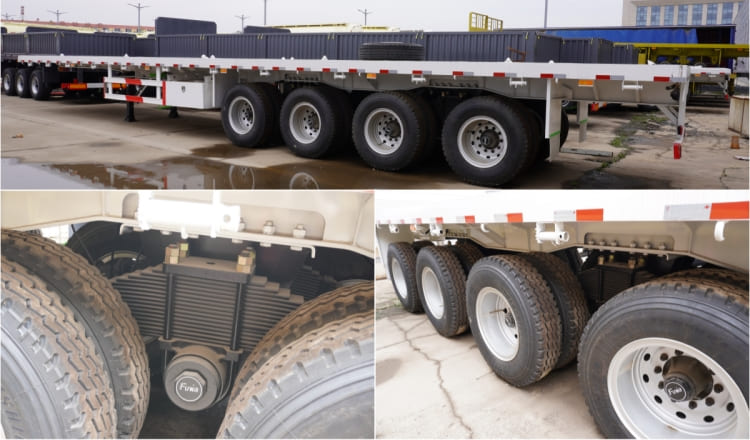

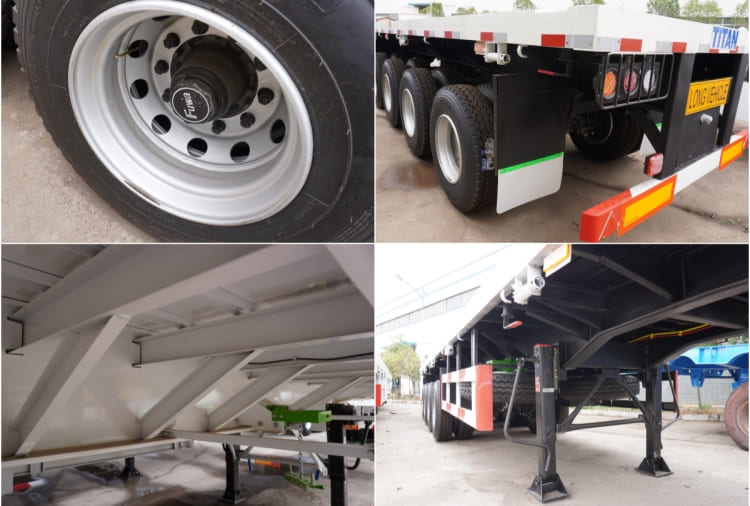

Axles: 4 axles , 13t/16t, FUWA/ BPW/TITAN

Suspension: Heavy duty mechanical suspension/airbag suspension/single point suspension

Spring Leaf: 90(Width)mm*13(Thickness)mm*10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Tire: 16 units, 12.00R22.5 or 315/80R22.5

Accessories :

Twist Locks: 4,8,12 sets (lifting or screw type)

ABS: Optional

Langing gear: JOST/FUWA Brand

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

LED：LED lights

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting :

Material : Polyurethane paint

Method : Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Package :

Shipping method: By bulk cargo carrier, RORO or 40HQ container

Package of 4 Axles Flatbed Trailers :

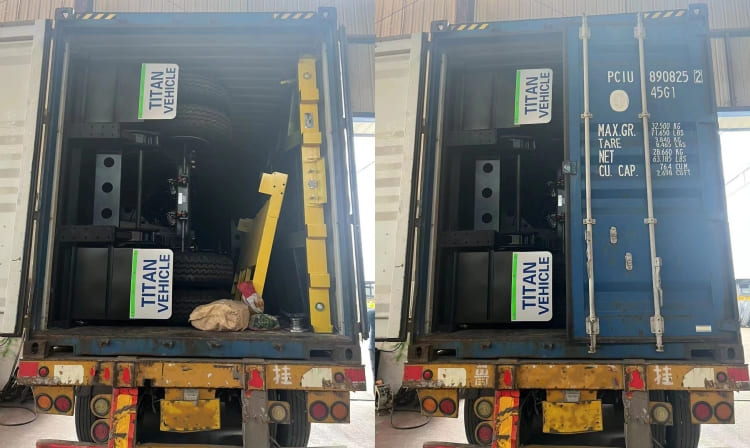

TITAN has a professional packaging solution and shipping team. If you purchased a TITAN 53 ft flatbed trailer for sale, we can pack your flatbed truck trailer in a 40ft container.

Up to three flatbed trailer can be packed into one container, which can save your ocean freight. Moreover, the container packing is safer, avoids the flatbed truck trailer being collided and deformed during transportation, and also has the function of waterproofing.

4 Axles 53 Ft Flatbed Truck Trailers for Sale Near Me in Kenya

Through this videos, you can learn about different types of flatbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.

Please click "TITAN Flatbed Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
