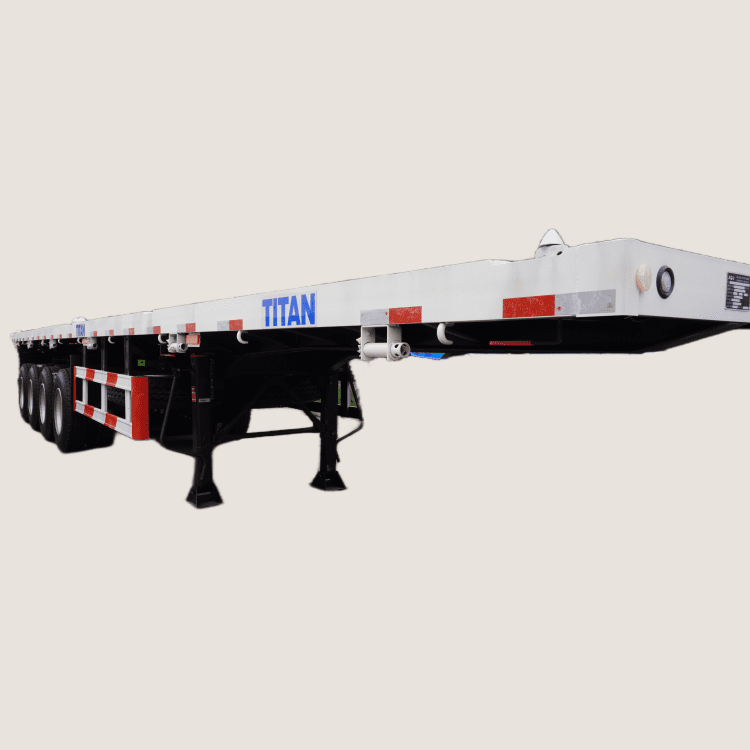

4 Axle 48 Ft Flatbed Container Semi Trailer

4 Axle Flatbed Description :

flatbed container semi trailer is a common transportation equipment in the modern transportation industry, mainly used to transport containers. The TITAN 48 flatbed trailer for sale has simple design, reasonable structure and strong transportation capacity.

Each flatbed container semi trailer has its own load rating and size. TITAN can provide flatbed container semi trailer with 2/3/4 axles and sizes of 20/40/45/48/53 foot, with a load capacity of 40-100 tons, to meet your different transportation needs. And the 4 axle 48 ft flatbed container semi trailer for sale is one of the most advantaged products.

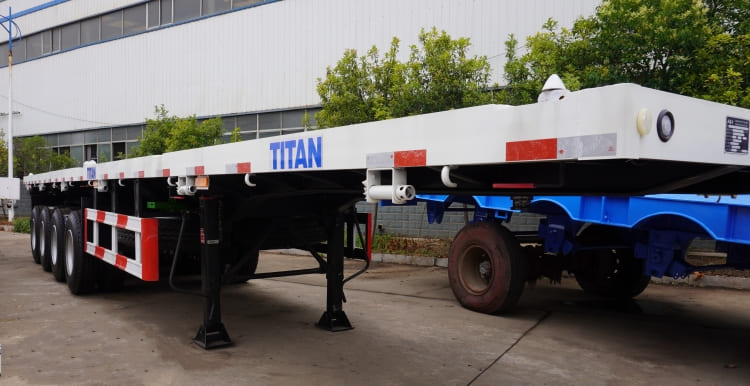

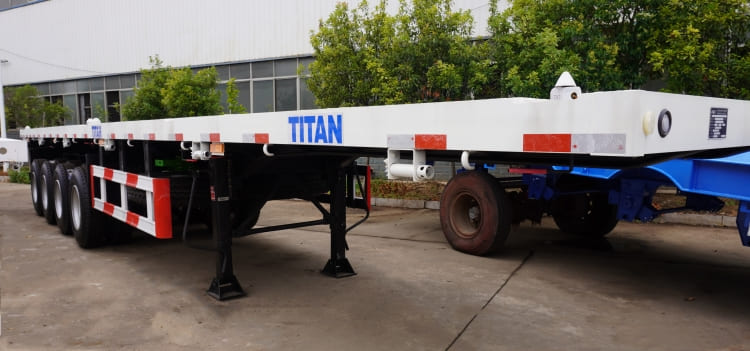

 4 Axle 48 Ft Flatbed Container Semi Trailer for Sale in Nigeria

4 Axle 48 Ft Flatbed Container Semi Trailer for Sale in Nigeria

4 Axle 48 Ft Flatbed Container Semi Trailer for Sale in Nigeria

48 Ft Flatbed Trailer Specification :

Model: 4 axle 48 ft flatbed semi trailer

Transport: 20ft, 40ft container or bulk cargo

Loading capacity: 60-80 Tons

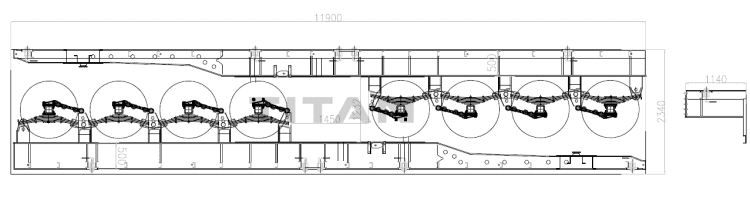

Overall dimension: 12500mm * 2500mm *1540mm

Main Beam: height: 500mm, upper plate:14mm, middle plate:8mm, bottom plate:16mm, material: Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Walking system：

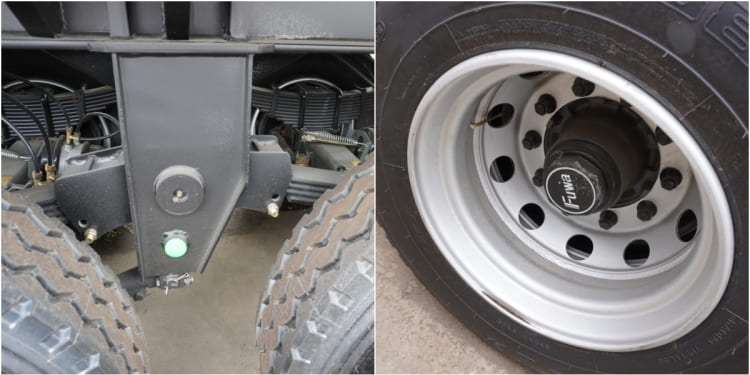

Axles: 4 axles , 13t/16t, FUWA/ BPW/TITAN

Suspension: Heavy duty mechanical suspension/airbag suspension/single point suspension

Spring Leaf: 90(Width)mm*13(Thickness)mm*10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Tire: 16 units, 12.00R22.5 or 315/80R22.5

Accessories :

Twist Locks: 4,8,12 sets (lifting or screw type)

ABS: Optional

Langing gear: JOST/FUWA Brand

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

LED：LED lights

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting :

Material : Polyurethane paint

Method : Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Package :

Shipping method: By bulk cargo carrier, RORO or 40HQ container

Flatbed Container Semi Trailer Package :

If you buy two flatbed container semi trailer together, we can put them in one container, we can minimize the volume of the flatbed semi trailer, which saves shipping costs, and the container can protect the trailer inside from rain and sea water. And it can also save our customers shipping costs

To prevent rust, TITAN will spray wax on the 48 flatbed semi trailer for sale trailer before shipping, even if it rains during transportation, our trailer will not appear rust.

The Feedback of 4 Axle 48 Ft Flatbed Container Semi Trailer for Sale in Nigeria

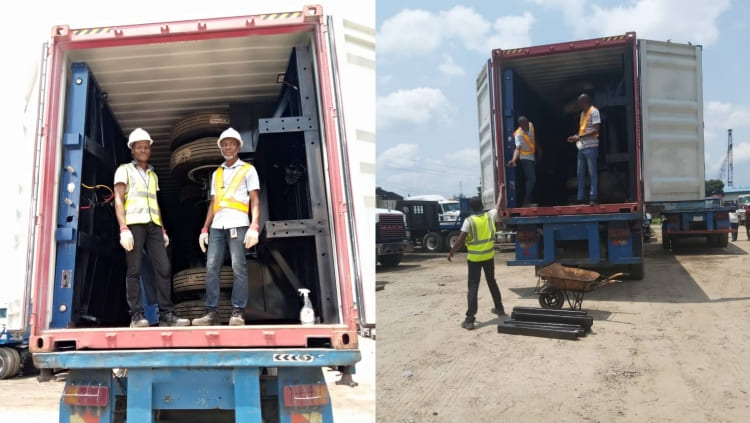

Two 4 Axle 48 Ft Flatbed Container Semi Trailer for Sale in One Container

Through this videos, you can learn about different types of flatbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.

Please click "TITAN Flatbed Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
