New 3 Axle 45 Ft Semi Truck Flatbed Trailer

Flatbed Trailer Description :

TITAN is a professional semi-trailer manufacturer and a leader in the same industry. The company's products cover semi-trailer series such as semi truck flatbed trailer for sale, fence semi trailers, flatbed semi trailers with side wall, and skeleton semi trailers.

The frame of the flatbed trailer is welded by the main beam, the cross beam and the front and rear beams. The main beam are submerged arc welded into an I-shape with strong load-carrying capacity. Container locks are designed to be retractable and will not damage the side beams.

New 3 Axle 45 Ft Semi Truck Flatbed Trailers Prices for Sale in Guinea

New 3 Axle 45 Ft Semi Truck Flatbed Trailers Prices for Sale in Guinea

New 3 Axle 45 Ft Semi Truck Flatbed Trailers Prices for Sale in Guinea

New 3 Axle 45 Ft Semi Truck Flatbed Trailers Prices for Sale in Guinea

3 Axle Flatbed Trailer Specification :

Model: 3 Axle 45 Ft Flatbed Trailer

Transport: 20ft, 40ft container or bulk cargo

Loading capacity: 60-80 Tons

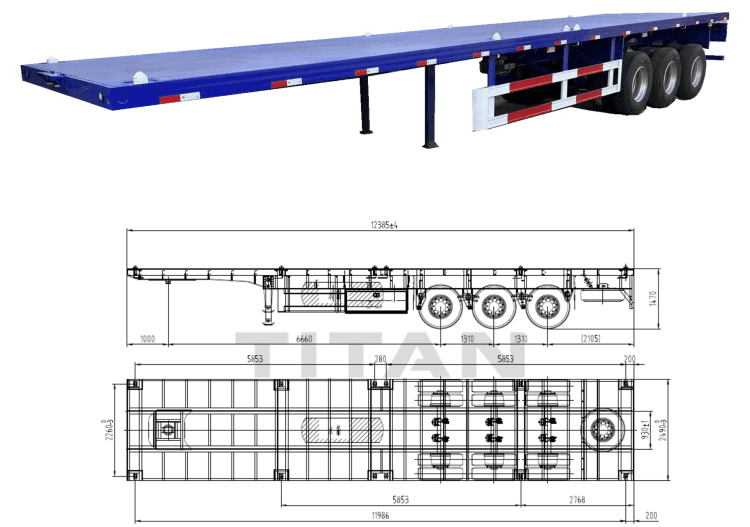

Overall dimension: 14380mm * 2490mm *1470mm

Main Beam: height: 500mm, upper plate:14mm, middle plate:8mm, bottom plate:16mm, material: Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Walking system：

Axles: 3 axles , 13t/16t, FUWA/ BPW/TITAN

Suspension: Heavy duty mechanical suspension/airbag suspension

Spring Leaf: 90(Width)mm*13(Thickness)mm*10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Accessories :

Twist Locks: 4,8,12 sets (lifting or screw type)

ABS: Optional

Langing gear: JOST/FUWA Brand

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

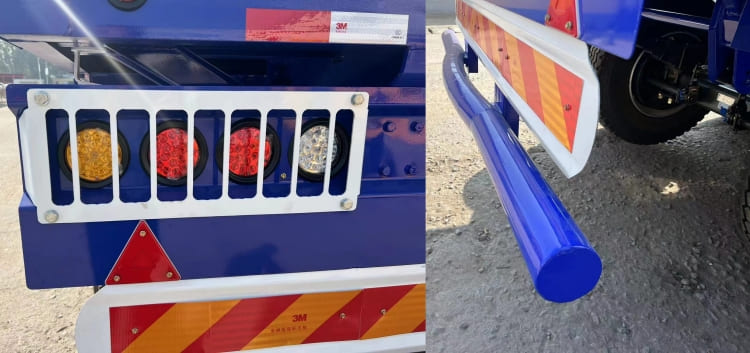

LED：LED lights

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting :

Material : Polyurethane paint

Method : Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Package :

Shipping method: By bulk cargo carrier, RORO or 40HQ container

New 3 Axle 45 Ft Semi Truck Flatbed Trailers Prices for Sale in Guinea

New Flatbed Trailers Advantages :

1. TITAN allows you to buy the best quality semi truck flatbed trailer for sale products at the most cost-effective flatbed trailer prices, reducing your new flatbed trailers purchase and post-maintenance costs.

2. TITAN has a complete semi trailer production line, and adopts advanced submerged arc welding technology to produce new flatbed trailers in the welding of beams. Therefore, there is no welding interface between the middle plate, bottom plate and upper plate of the frame of the flatbed trailer.

3. The bottom plate of the flatbed trailer adopts a 3mm non-slip grid plate, which will be more stable when loading bulk goods. And the loading capacity of the flatbed trailer is greatly improved, even if you use our trailer to carry heavy objects, it will not deform.

4. The whole semi truck flatbed trailer for sale is painted with polyurethane paint. This kind of paint film is bright and plump, hard and wear-resistant, oil-resistant and acid-resistant. The formula can be adjusted in a wide range to meet different needs.

Through this videos, you can learn about different types of flatbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.

Please click "TITAN Flatbed Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
