Tri Axle 40 Ft Flatbed Container Trailer

Flatbed Trailer Description :

A flatbed trailer for sale can transport containers and other bulk cargo. The subjective structure of the flatbed container trailer for sale is flat. It is mainly applicable to the logistics system supporting ships, ports, routes, highways, transfer stations, bridges, tunnels, and multimodal transport.

The main types of flatbed trailer for sale produced by TITAN are: 2/3/4 axles, 20/40/48/53 inches, etc. According to the number of axles and the size of the tires, the load capacity of the flatbed trailer for sale is also different. Generally speaking, the more axles, the larger the load, and the load range is between 40-150 tons. And TITAN can provides the most reasonable flatbed trailer prices.

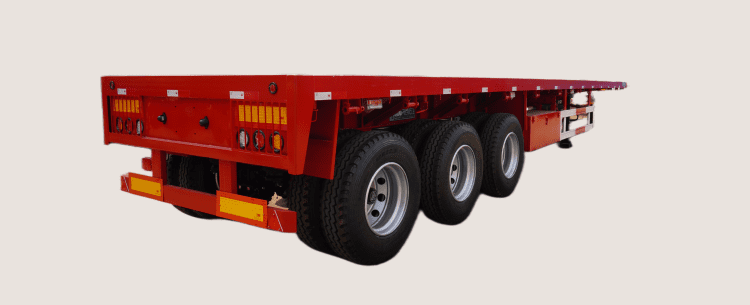

Tri Axle 40 Ft Flatbed Container Trailer prices for Sale

Tri Axle 40 Ft Flatbed Container Trailer prices for Sale

Details about 40 Ft Flatbed Trailer :

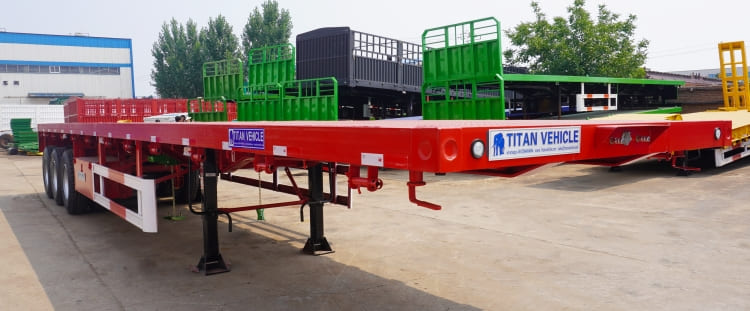

Tri Axle 40 Ft Flatbed Container Trailer prices for Sale in Ghana

Tri Axle 40 Ft Flatbed Container Trailer prices for Sale in Ghana

Tri Axle Flatbed Trailer for Sale Specification :

Model: Tri Axle 40 Ft Flatbed Trailer

Transport: 20ft, 40ft container or bulk cargo

Loading capacity: 60-80 Tons

Overall dimension: 12500mm * 2500mm *1540mm

Main Beam: height: 500mm, upper plate:14mm, middle plate:8mm, bottom plate:16mm, material: Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Walking system：

Axles: 3 axles , 13t/16t, FUWA/ BPW/TITAN

Suspension: Heavy duty mechanical suspension/airbag suspension

Spring Leaf: 90(Width)mm*13(Thickness)mm*10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Accessories :

Twist Locks: 4,8,12 sets (lifting or screw type)

ABS: Optional

Langing gear: JOST/FUWA Brand

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

LED：LED lights

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting :

Material : Polyurethane paint

Method : Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Package :

Shipping method: By bulk cargo carrier, RORO or 40HQ container

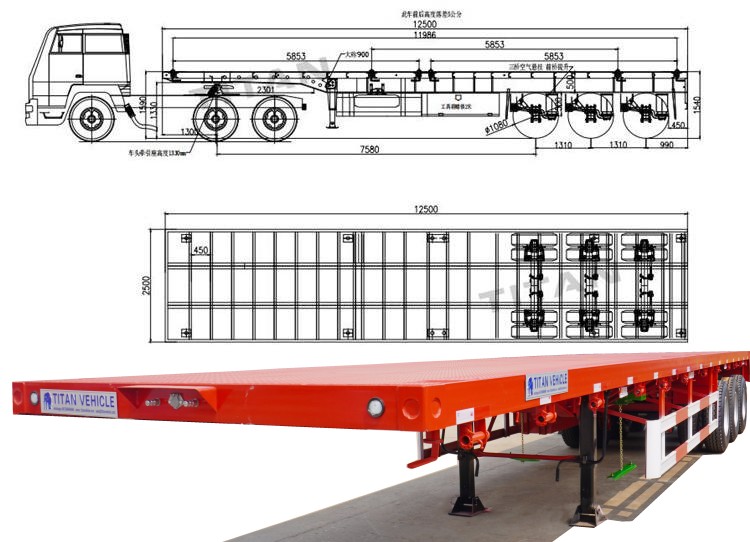

The Drawing of Tri Axle 40 Ft Flatbed Container Trailer

Flatbed Container Trailer Advantages :

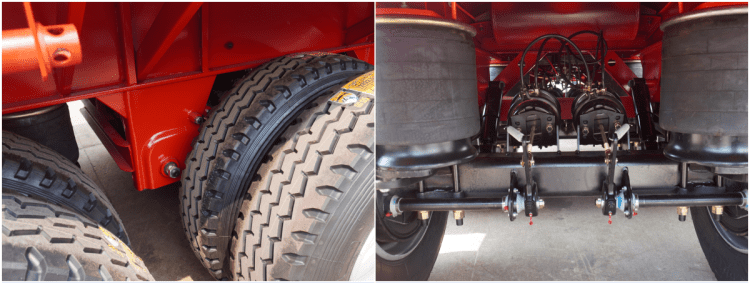

1. The advantage of this 40 ft flatbed trailer is that it is equipped with airbag suspension. The first is to reduce the bumps and vibrations of the frame, and the safety has been greatly improved. Secondly, the airbag suspension has an excellent shock absorption effect, which can also play a role in reducing the damage to the road surface to a certain extent.

2. The main purpose of the flatbed trailer for sale is to transport all kinds of containers. The flatbed container trailer produced by TITAN has sufficient strength, and the main beam is made of Q345 high-strength steel, which has a long service life.

3. TITAN flatbed trailer for sale can be quickly loaded and unloaded container or bulk cargo, and can be directly and conveniently changed from one means of transport to another. Fast speed, high efficiency, time saving, labor saving and cost saving.

3. The flatbed trailer produced by TITAN are convenient for filling and emptying of goods and meet the individual needs of customers. Customized flatbed trailer for sale of different sizes and loads according to the transportation needs of customers, with stable quality and reliable performance.

Through this videos, you can learn about different types of flatbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.
