3 Axle Flatbed Semi Trailer with Side Wall

Side Wall Trailer Description :

The side wall trailer can be said to be the earliest type of semi-trailer in China. As a transport vehicle, the semi trailer with side wall carriage can carry a wide range of cargo types. Many super-long, super-wide, and super-high cargo can be loaded, such as steel, wood, and stone, especially for the transportation of large equipment. Therefore, almost all goods within the range can be loaded.

TITAN can provides the most reasonable side wall flatbed semi trailer price. And different side wall truck trailer model including 2/3/4 axle side wall trailer with different loading capacity.

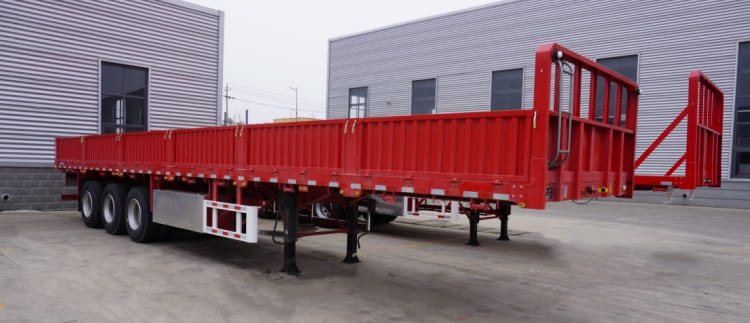

3 Axle Flatbed Semi Truck Trailer with Side Wall for Sale

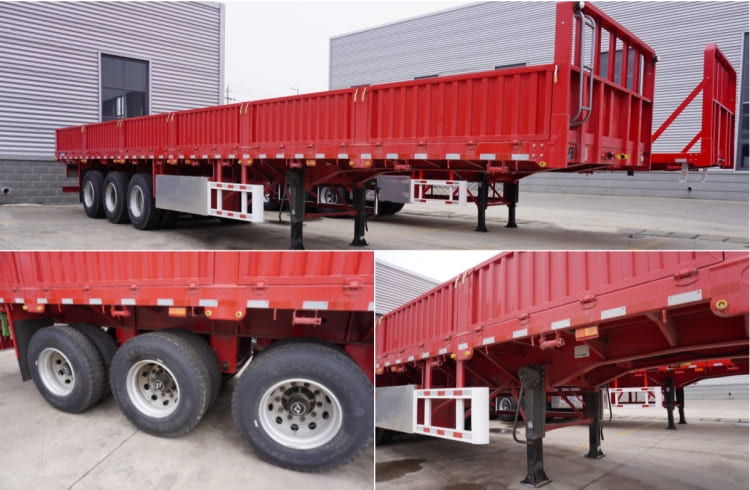

3 Axle Flatbed Semi Truck Trailer with Side Wall for Sale

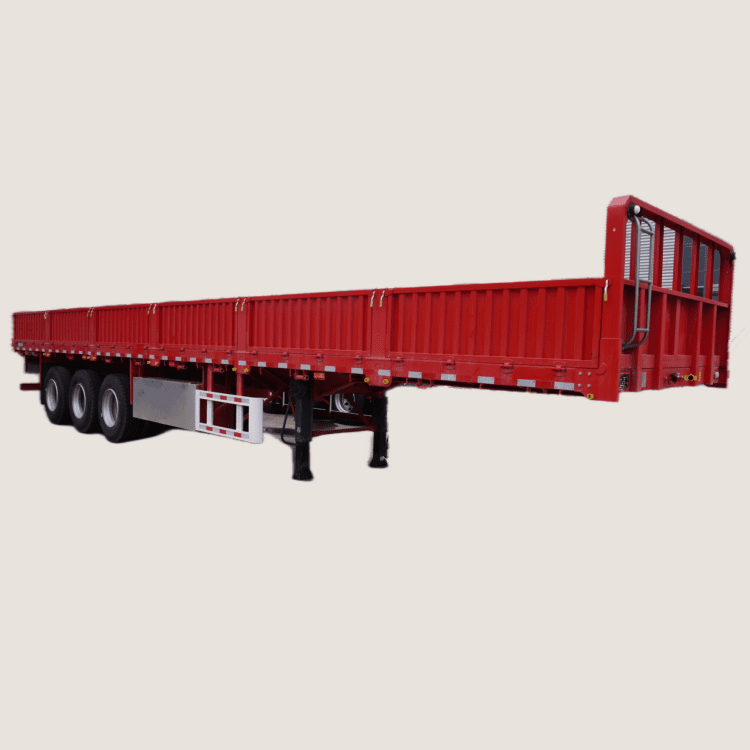

3 Axle Flatbed Semi Truck Trailer with Side Wall for Sale

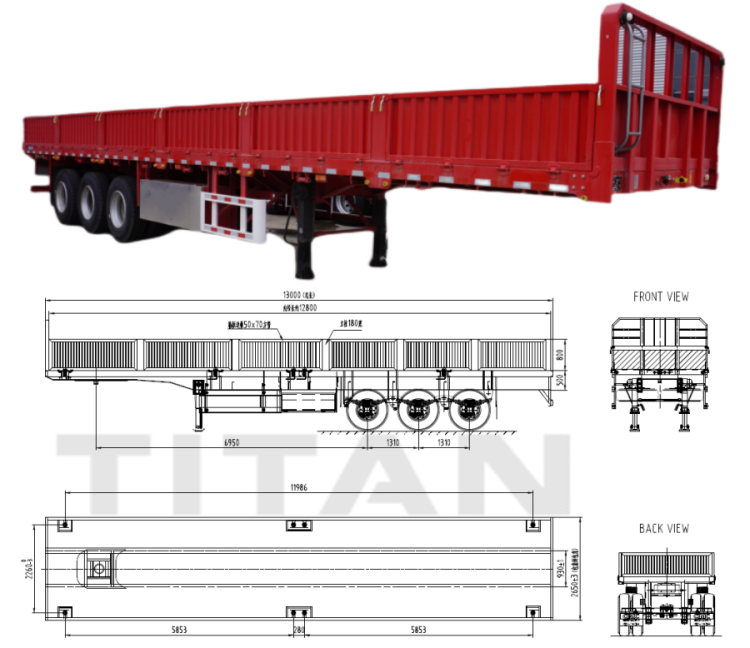

Side Wall Truck Trailer Specification :

Model: 3 axle side wall trailer

Dimension(mm): 13000mmx2650mmx3050mm

Trailer Sides: 600mm

Loading capacity(ton): 60-80T

Frame :

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Bottom Platform: 3mm-thick checkered plate

Walking system :

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Tare Weight: About 7.6T

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Accessories ：

Landing Gear: JOST brand D200T or TITAN brand 28tons(double-speed)

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting :

Material : Polyurethane paint

Method : Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Package :

Shipping method: By bulk cargo carrier, RORO or 40HQ container

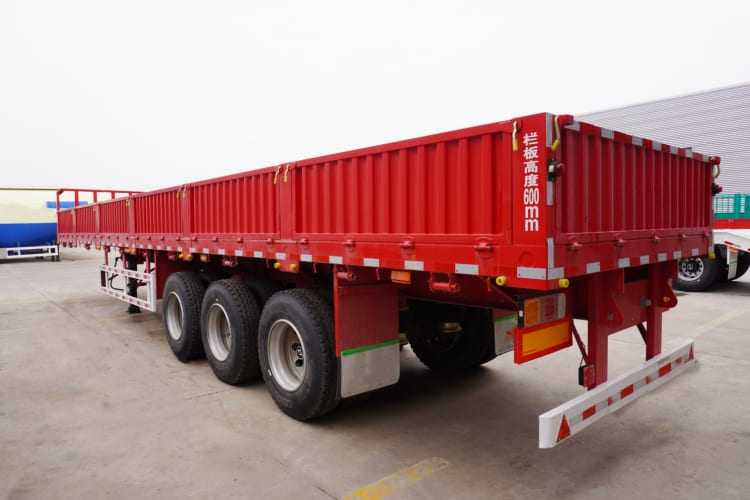

3 Axle Flatbed Semi Truck Trailer with Side Wall for Sale

Side Wall Trailer for Sale Advantages :

1. The side wall trailer type and fence structure design process is combined with the user's cargo category, and the design is reasonable to fully reduce the weight of the carriage under the condition of load. The structure is simple and applicable, and the disassembly is convenient, which reduces the investment cost for the user and creates more profit value.

2. The TITAN side wall trailer for sale frame adopts a space frame structure welded by longitudinal beams and integral penetrating beams. It can balance the strength, stiffness and toughness of the frame, with strong bearing capacity and no deformation.

3. The series of semi trailer with side wall frames are all beam-type structures, and the longitudinal beams are straight or gooseneck. The height of the web is from 400 to 500, the longitudinal beam is welded by automatic submerged arc welding, the frame is processed by shot blasting, and the cross beam penetrates the longitudinal beam and is welded as a whole.

4. A new type of suspension system is adopted in TITAN side wall flatbed semi trailer, with high strength and strong impact resistance; the load of each axle is balanced, and the angle of the pull rod of the system is reasonably designed to effectively reduce tire wear phenomenon.

Through this video, you can learn about different types of sidewall semi trailers, as well as the process, testing, packaging and customer feedback, etc.

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
