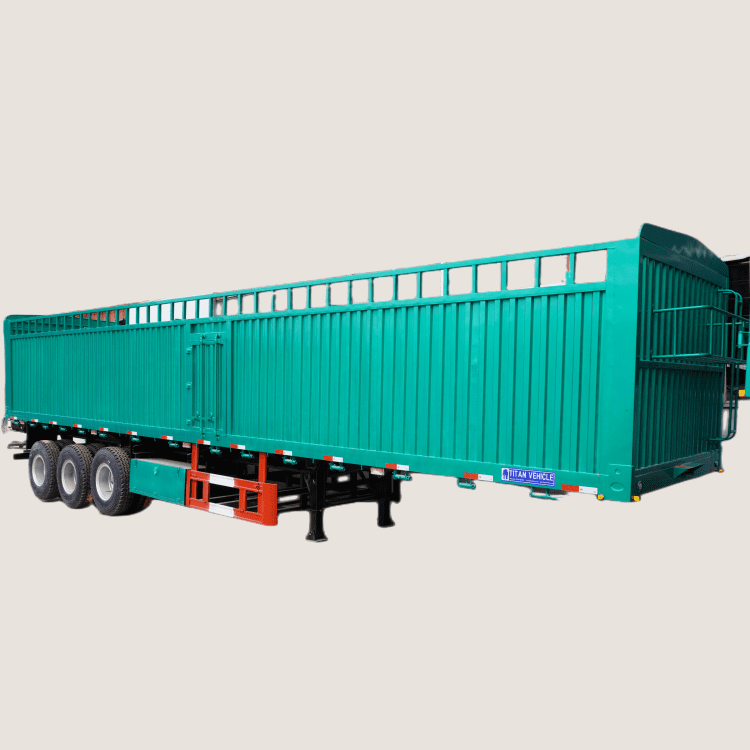

Tri Axle 50 Ton Sidewall Cargo Semi Trailer

Cargo Sidewall Trailer Description :

Sidewall cargo semi trailer are popular with logistics companies for their versatile applications. It is used to load various products and materials such as sand, bags, poultry, etc. There are also some bulk cargoes that are very widely used in the transportation industry.

This cargo sidewall trailer is a high side trailer. High-quality sidewalls ensure the stability and safety of the load. TITAN can also provide sidewall cargo semi trailer for sale with different heights according to the cargo you transport to meet your transportation needs.

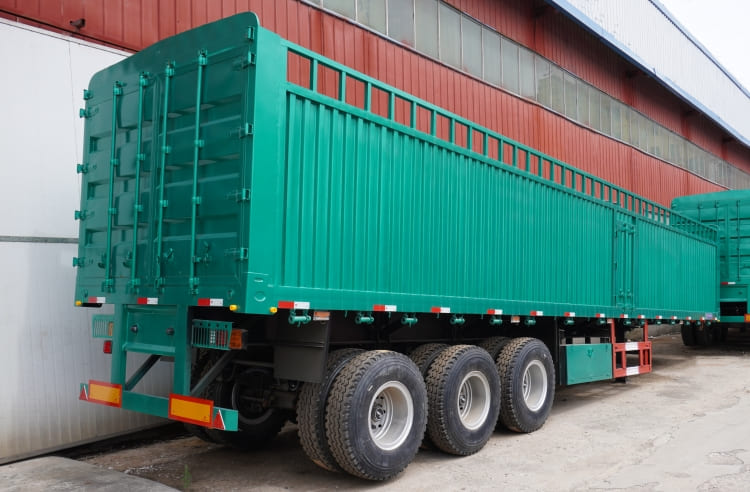

Tri Axle 50 Ton Sidewall Cargo Semi Trailer for Sale in Kenya

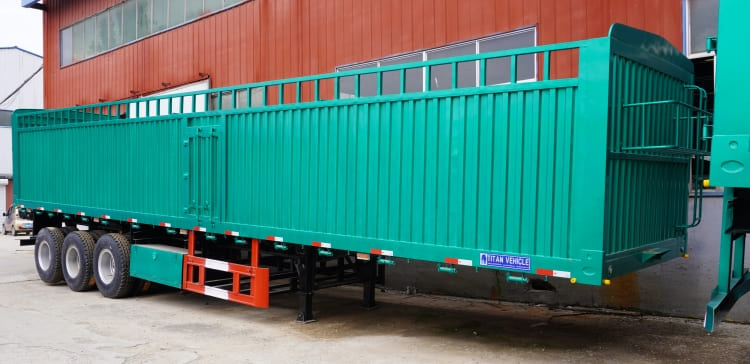

Tri Axle 50 Ton Sidewall Cargo Semi Trailer for Sale in Kenya

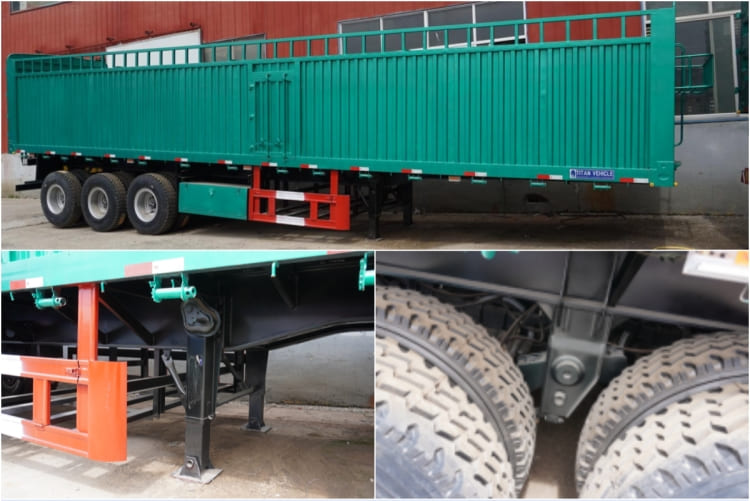

Tri Axle 50 Ton Sidewall Cargo Semi Trailer for Sale in Kenya

Tri Axle Sidewall Trailer Specification :

Model: tri axle 50 ton sidewall trailer

Dimension(mm): 13000mmx2650mmx3050mm

Trailer Sides: Optional

Loading capacity(ton): 60-80T

Frame :

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Bottom Platform: 3mm-thick checkered plate

Walking system :

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Tare Weight: About 7.6T

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension/ Airbag suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Accessories ：

Landing Gear: JOST brand D200T or TITAN brand 28tons(double-speed)

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting :

Material : Polyurethane paint

Method : Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Package :

Shipping method: By bulk cargo carrier, RORO or 40HQ container

Cargo Sidewall Trailer Advantages :

1. The frame of the sidewall cargo semi trailer is a through-beam structure, and the longitudinal beam adopts a straight type or a gooseneck type. The longitudinal beam is welded by automatic submerged welding, the frame is treated by shot peening, and the cross beam penetrates the longitudinal beam and is welded as a whole.

2. The automatic production coating is uniform, and the whole sidewall trailer for sale is truly anti-corrosion without dead ends, which greatly improves the service life of the whole vehicle. In addition, the whole vehicle adopts a large number of prefabricated structures, which further improves the convenience and timeliness of maintenance.

3. TITAN 50 ton sidewall trailer floor is checkered, which will make other bulk cargo more stable. Titan produces trailers with a  more thicker skid platform that won't deform even if you carry heavy loads with our trailers.

4. Polyurethane paint has strong paint film, strong adhesion, full luster, corrosion resistance, water resistance and wear resistance. It makes the whole sidewall trailer for sale more beautiful, effectively protects the body from rusting and prolongs the service life of the whole side wall trailer.

Through this video, you can learn about different types of sidewall semi-trailers, as well as the process, testing, packaging and customer feedback, etc.

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
