3 Axle Side Wall Trailer

Side Wall Semi Trailer Description :

Flatbed trailer with side walls has a sidewall structure design. We have 2/3/4 axles semi trailer with side wall, and load capacity has 30/40/60/80/100 tons for your choice. Customizable side wall height.

3 axle side wall trailer are used extensively throughout the Africa to transport bulk cargo and agricultural products. And TITAN can also offer the all kinds of different side wall semi trailer loading ability from 40-100 tons.

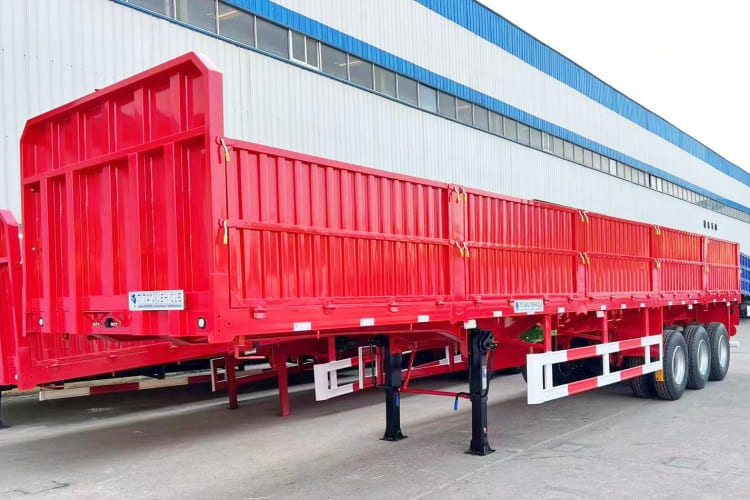

3 Axle Flatbed Semi Trailer with Side Walls for Sale in Congo

TITAN adopts advanced submerged arc welding technique to produce the side wall semi trailer.

3 Axle Flatbed Semi Trailer with Side Walls for Sale in Congo

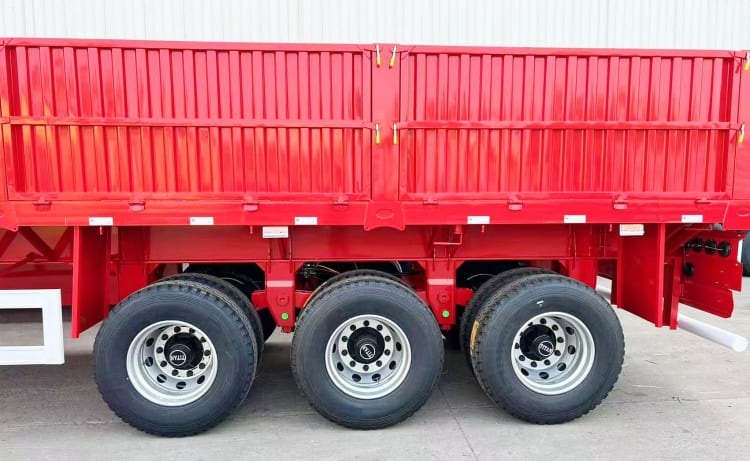

Semi trailer with side wall adopts 12R22.5 tire, In addition, we can also provide different tire models.

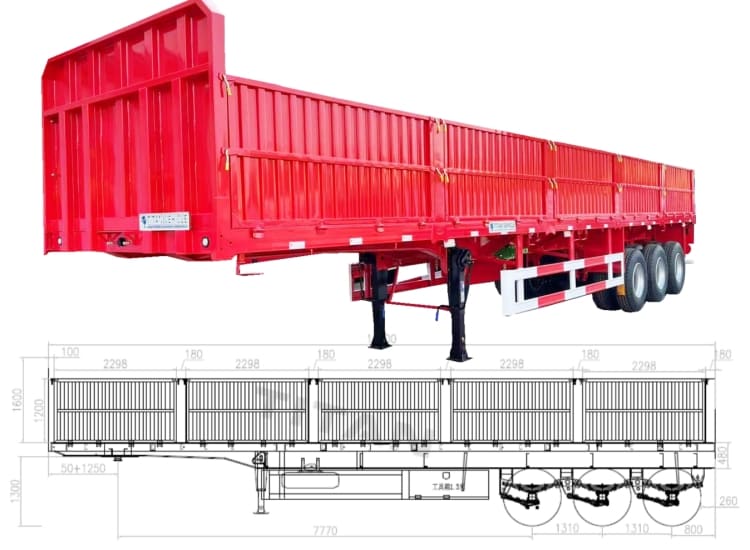

Side Wall Semi Trailer Drawing :

3 Axle Flatbed Semi Trailer with Side Walls for Sale in Congo

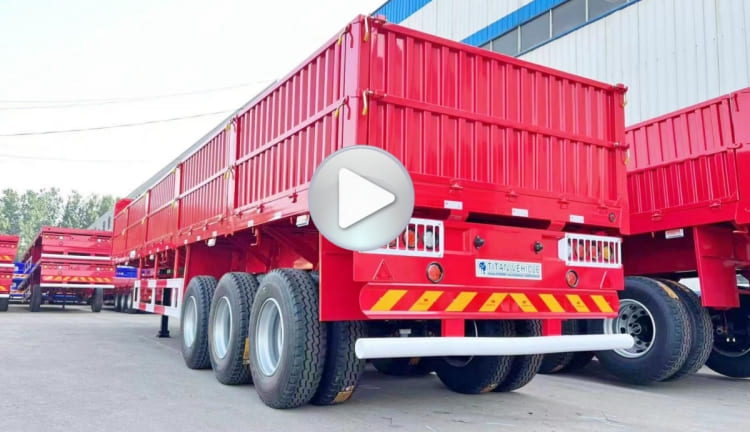

Video of 3 Axle Side Wall Trailer :

Side Wall Semi Trailer Specification :

Loading capacity(ton): 60-80 T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

Tire: 12 units, 12R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical, Bogie, Airbag suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers

King Pin: JOST brand 2.0 or 3.5 inch

Landing Gear: JOST brand D200T or Chinese brand 28tons

Platform: 3mm-thick checkered plate

Twist Locks: 4,8,12 sets
