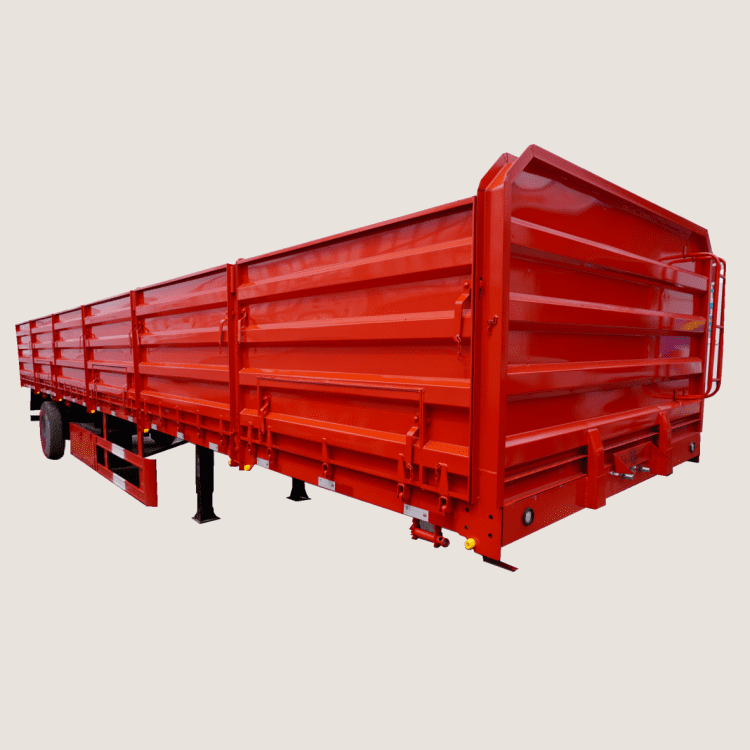

Single Tire 60 Ton Sidewall Fence Semi Trailer

Sidewall Semi Trailer Description :

The sidewall semi trailer can pull bulk cargo and light foam cargo within 40 tons, the standard type can pull steel within 60 tons, and both wire and coil can be pulled when the load is even. After the fence is put down, you can also pull some machinery, or some objects with a slightly wider width. In short, the sidewall fence semi trailer is more affordable and versatile.

TITAN Vehicles uses high-strength steel materials to manufacture sidewall semi trailer for sale, which can make the trailer have higher bearing capacity and longer service life. After adopting the container lock on the sidewall fence semi trailer, it can be used for loading containers.

Single Tire 60 Ton Sidewall Stake Fence Semi Trailer for Sale

Single Tire 60 Ton Sidewall Stake Fence Semi Trailer for Sale

Single Tire 60 Ton Sidewall Stake Fence Semi Trailer for Sale

Stake Trailer Single Tire Specification :

Model: Single Tire 60 Ton Sidewall Fence Semi Trailer

Dimension(mm): 13000mmx2650mmx3050mm

Trailer Sides height: Optional

Loading capacity(ton): 60-80T

Frame :

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Bottom Platform: 3mm-thick checkered plate

Walking system :

Axles: 13T/16T ,FUWA/ BPW/ TITAN Brand

Tire: 2 units, 12.00R22.5 or 315/80R22.5

Tare Weight: About 7.6T

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension/ Airbag suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Accessories ：

Landing Gear: JOST brand D200T or TITAN brand 28tons(double-speed)

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting :

Material : Polyurethane paint

Method : Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Package :

Shipping method: By bulk cargo carrier, RORO or 40HQ container

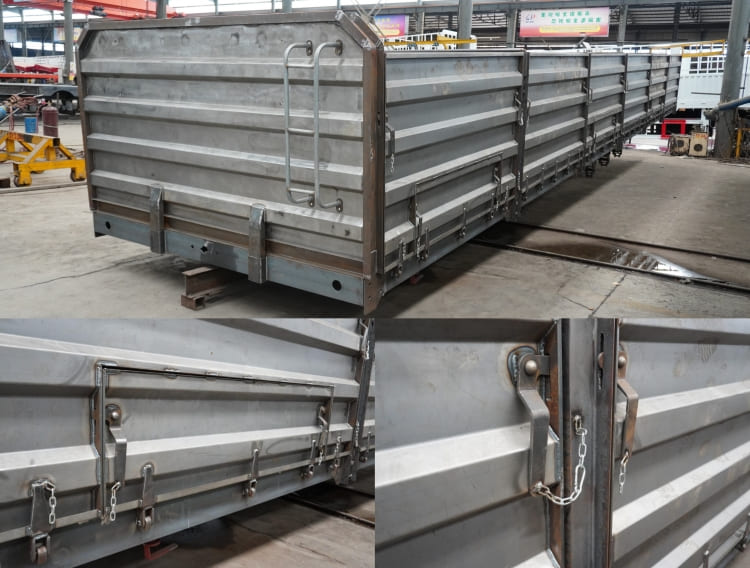

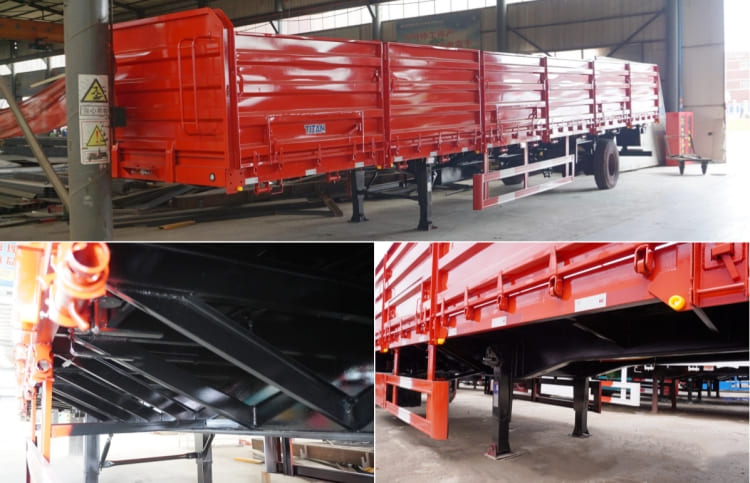

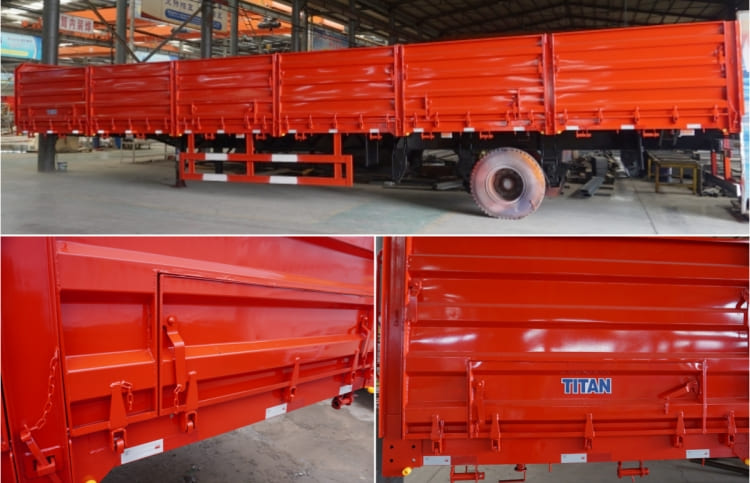

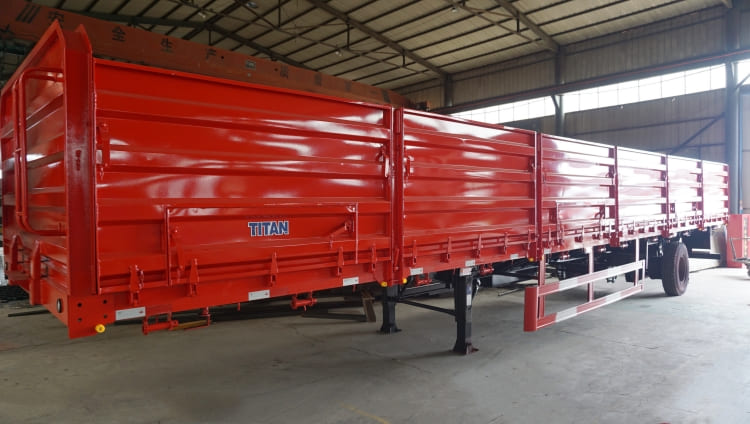

60 Ton Sidewall Semi Trailer in the Factory :

Single Tire 60 Ton Sidewall Stake Fence Semi Trailer for Sale

Through this video, you can learn about different types of sidewall semi-trailers, as well as the process, testing, packaging and customer feedback, etc.

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
