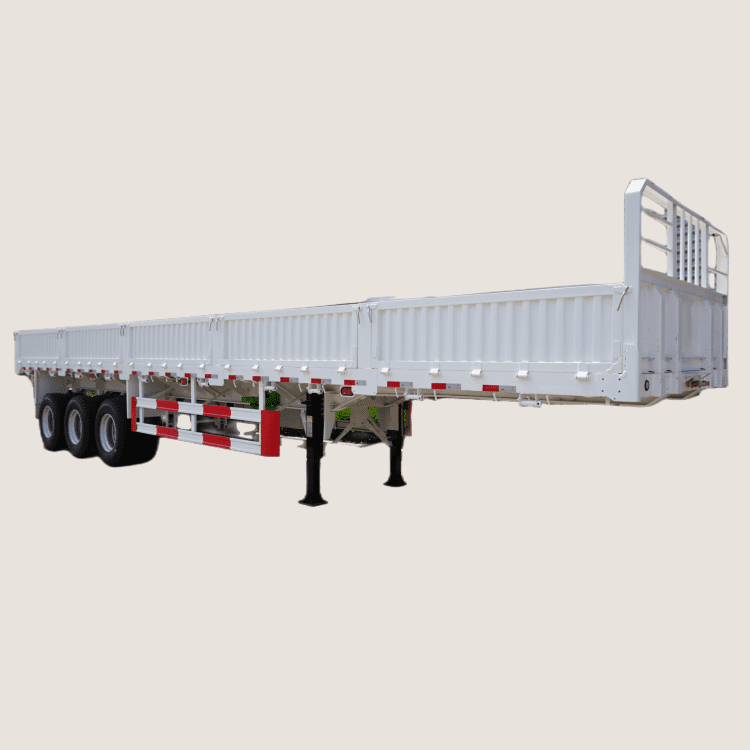

3 Axle Side Wall Flatbed Semi Trailer

Side Wall Trailer Description :

A side wall trailer is a truck specially used to pull some bulk goods, and there are special devices around it to prevent the leakage of bulk goods. TITAN can provide you with a variety of models and sizes of side wall flatbed semi trailer to meet your needs for transporting goods of different weights.

At the same time, the side wall flatbed semi trailer are designed and manufactured according to user requirements, and produce double layer fresh animal transport vehicles, fruit and vegetable transport vehicles, etc., which are suitable for medium and short distance road transportation.

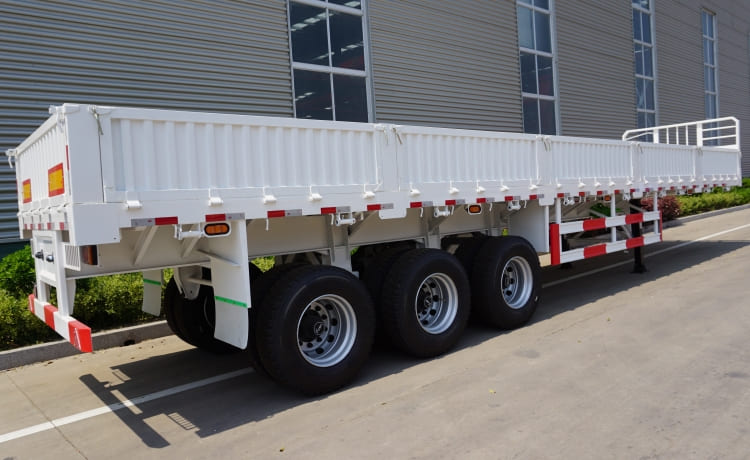

China 3 Axle Side Wall Flatbed Semi Trailer for Sale in Uganda

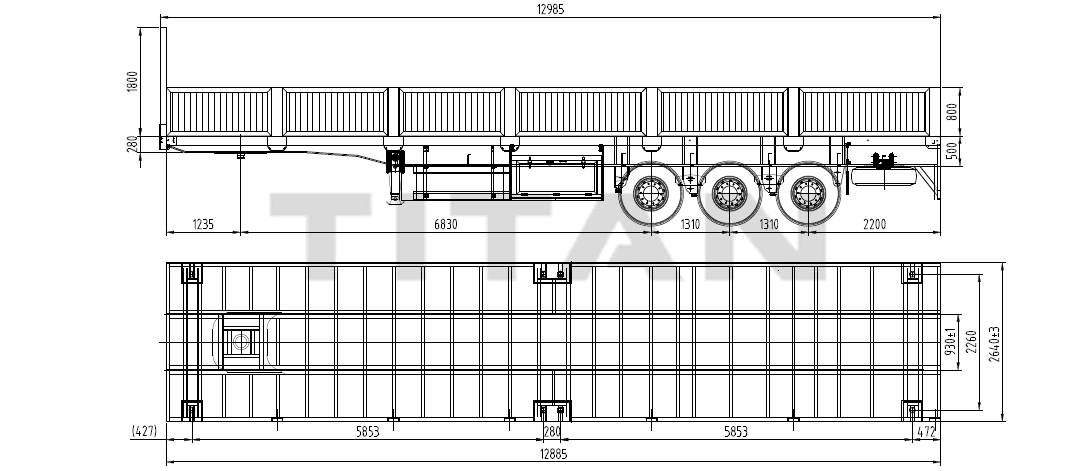

China 3 Axle Side Wall Flatbed Semi Trailer for Sale in Uganda

Side Wall Semi Trailer Specification :

Model: 3 axle side wall flatbed semi trailer

Dimension(mm): 12985mmx2640mmx3050mm

Trailer Sides: 1500mm

Loading capacity(ton): 60-80T

Frame :

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Bottom Platform: 3mm-thick checkered plate

Walking system :

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Tare Weight: About 7.6T

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Accessories ：

Landing Gear: JOST brand D200T or TITAN brand 28tons(double-speed)

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting :

Material : Polyurethane paint

Method : Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Package :

Shipping method: By bulk cargo carrier, RORO or 40HQ container

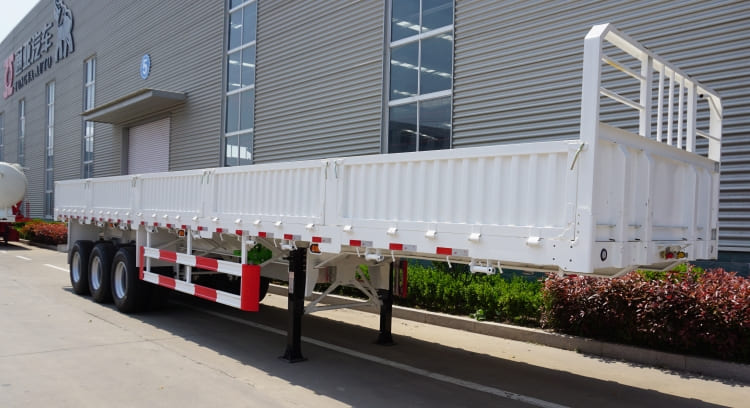

China 3 Axle Side Wall Flatbed Semi Trailer for Sale in Uganda

China Side Wall Trailer Advantages :

1. The whole 3 axle side wall flatbed semi trailer body is welded by high-strength steel, with strict production and manufacturing process, the vehicle structure is reasonable, the performance is reliable, the operation is simple and the appearance is beautiful.

2. TITAN side wall flatbed semi trailer suspension adopts reinforced rigid suspension, which is made of tandem leaf spring and suspension support, with reasonable structure, strong rigidity and strength, and is used to support the load and reduce the impact.

3. The accessories are all products of well-known manufacturers at home and abroad, and are purchased, inspected and used in strict accordance with the requirements of the quality system documents, which greatly improves the performance of the 3 axle side wall flatbed semi trailer.

4. TITAN lightweight side wall flatbed semi trailer draws on domestic and foreign design concepts, and greatly reduces the curb weight without affecting the structural strength. At the same time, it is also unique in reducing fuel consumption and tire wear.

Through this video, you can learn about different types of sidewall semi trailers, as well as the process, testing, packaging and customer feedback, etc.
